Engine Control Module

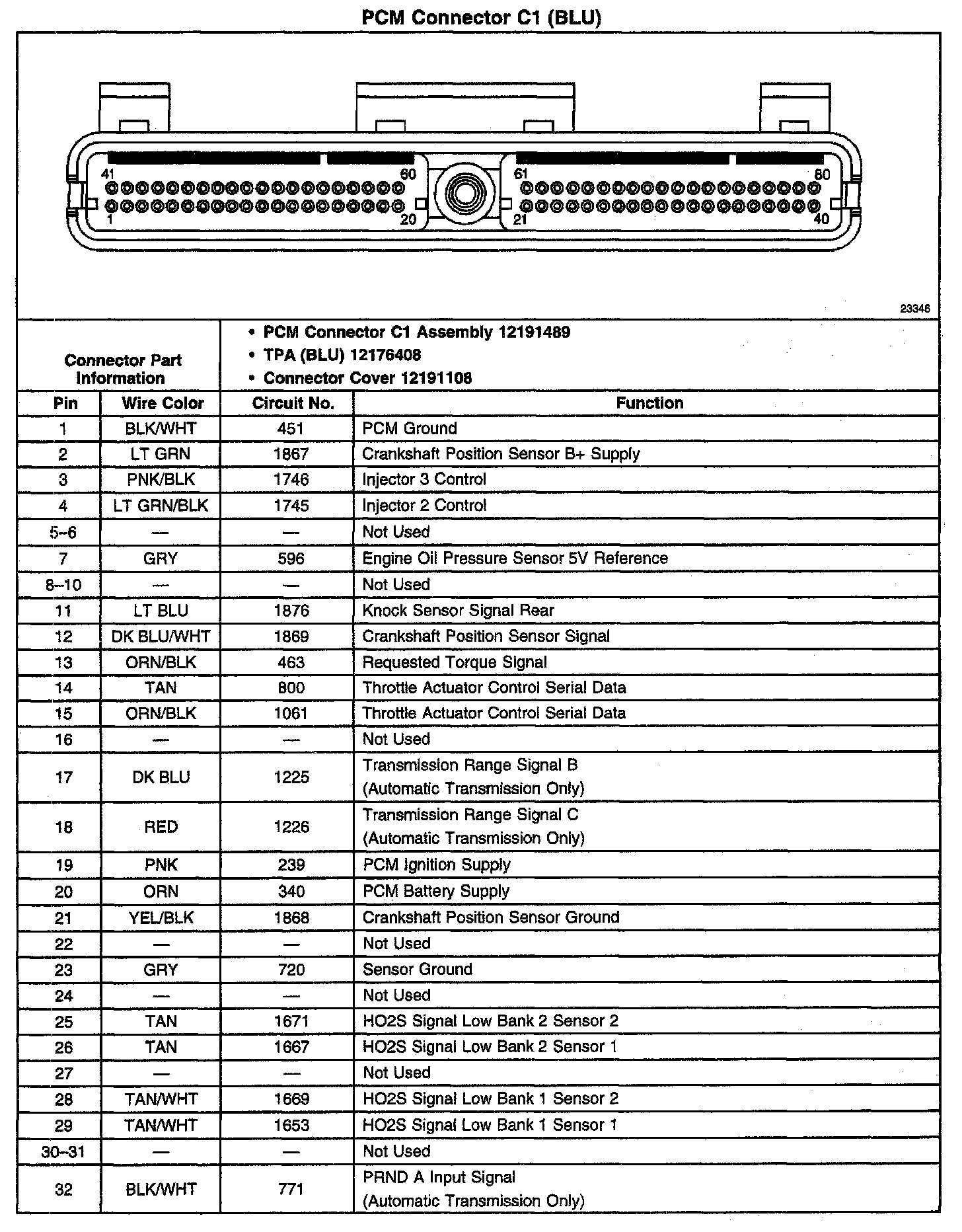

PCM Connector C1 (BLU) - Part 1 Of 3:

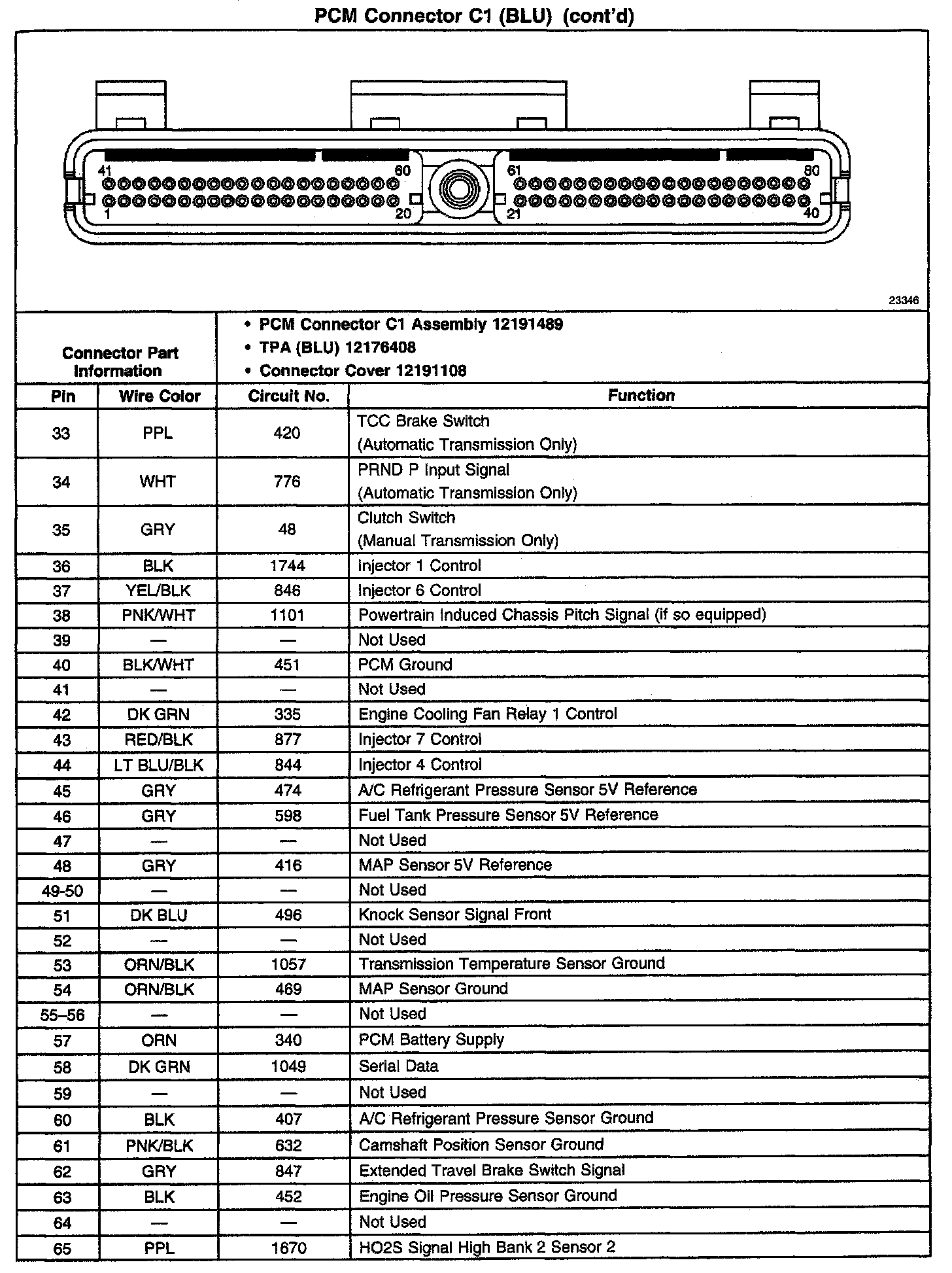

PCM Connector C1 (BLU) - Part 2 Of 3:

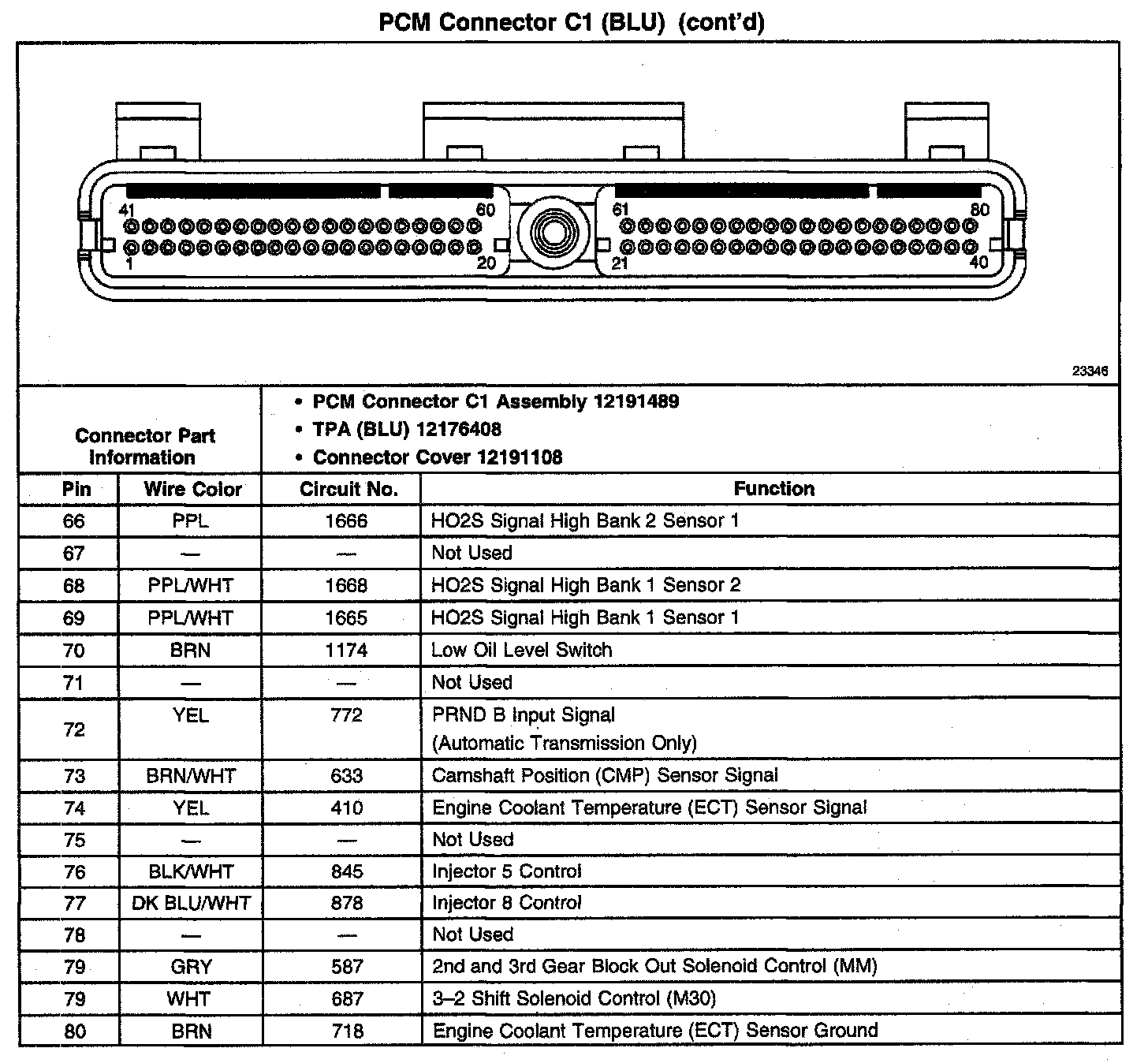

PCM Connector C1 (BLU) - Part 3 Of 3:

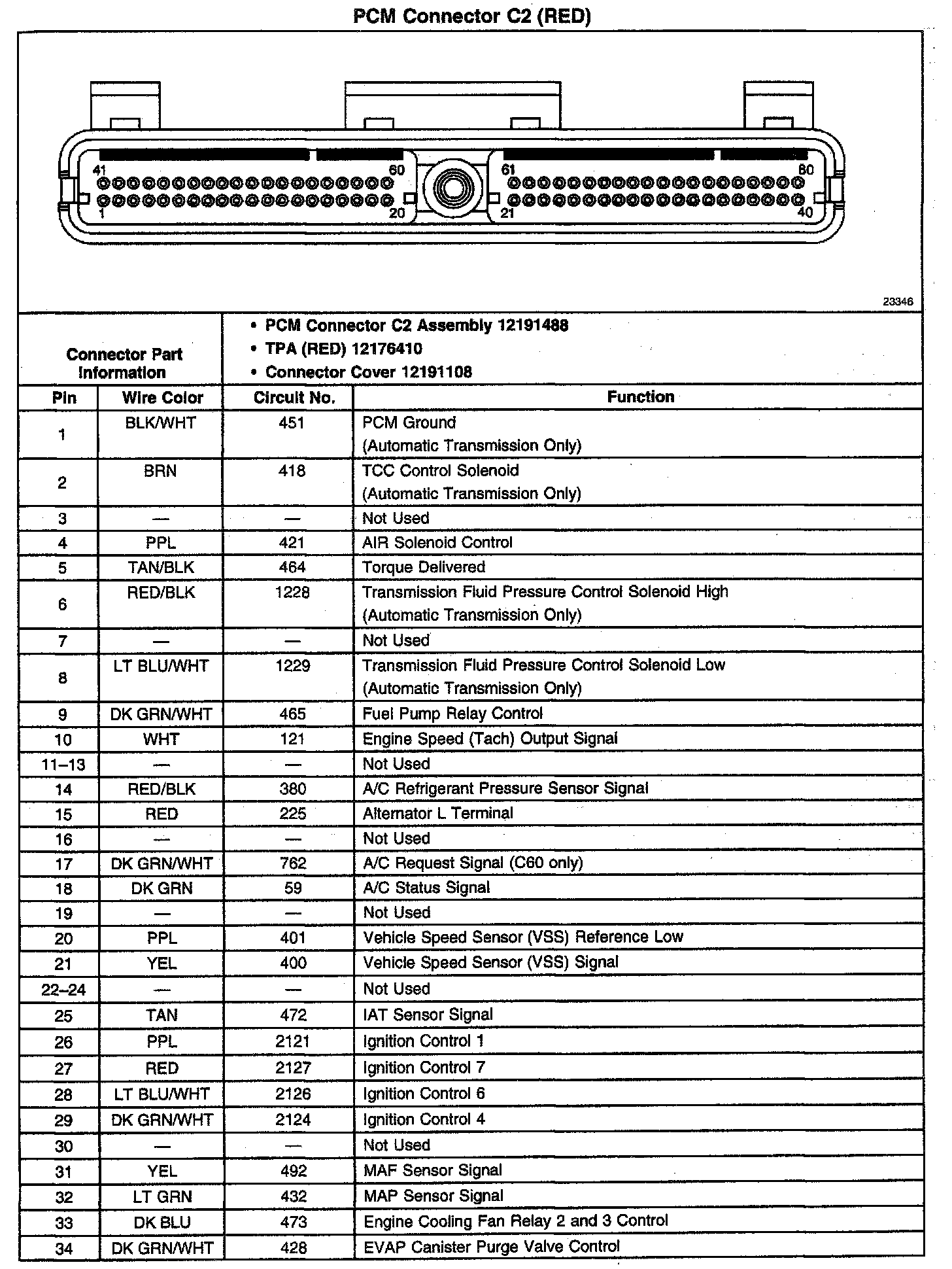

PCM Connector C2 (RED) - Part 1 Of 3:

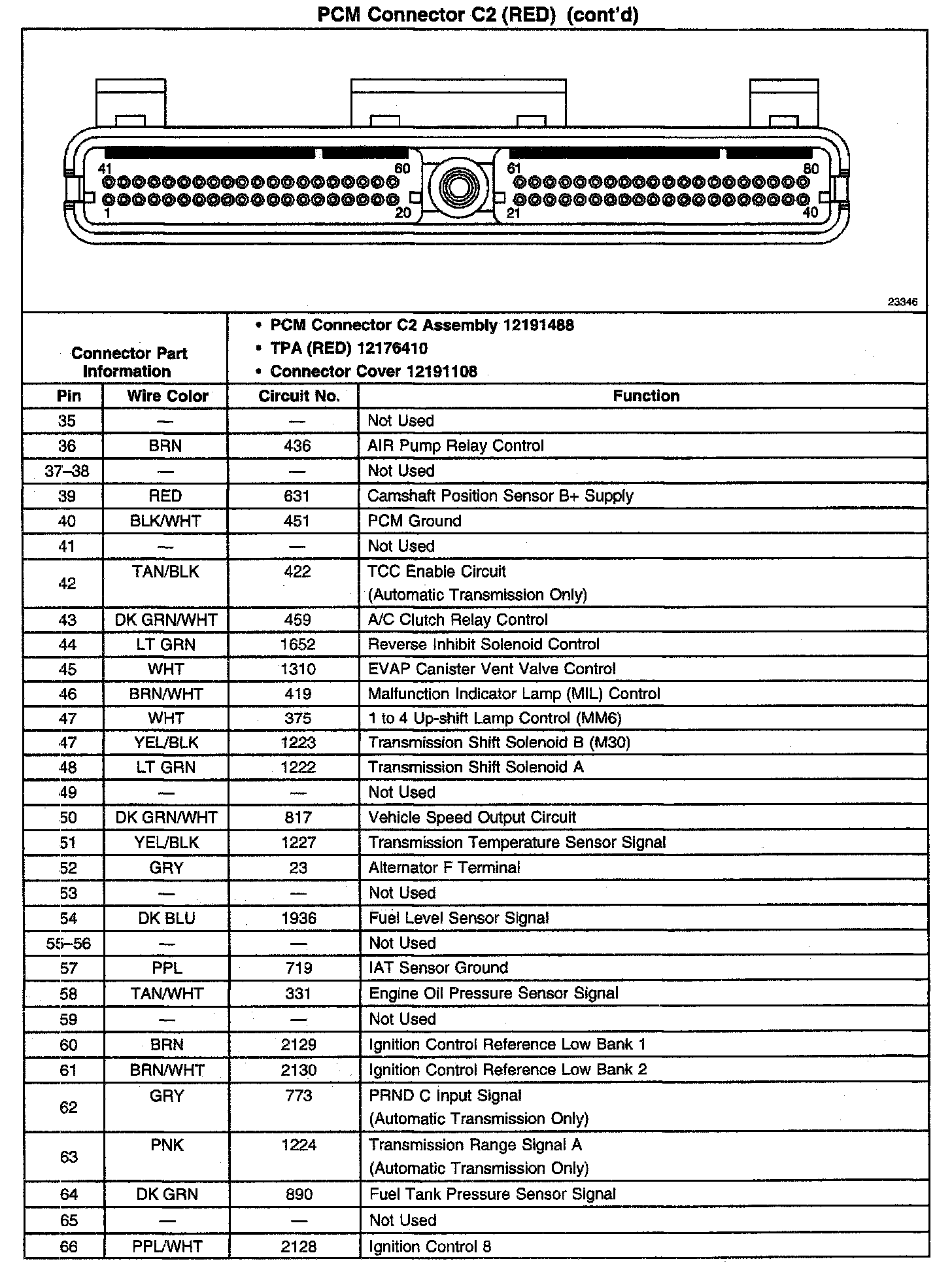

PCM Connector C2 (RED) - Part 2 Of 3:

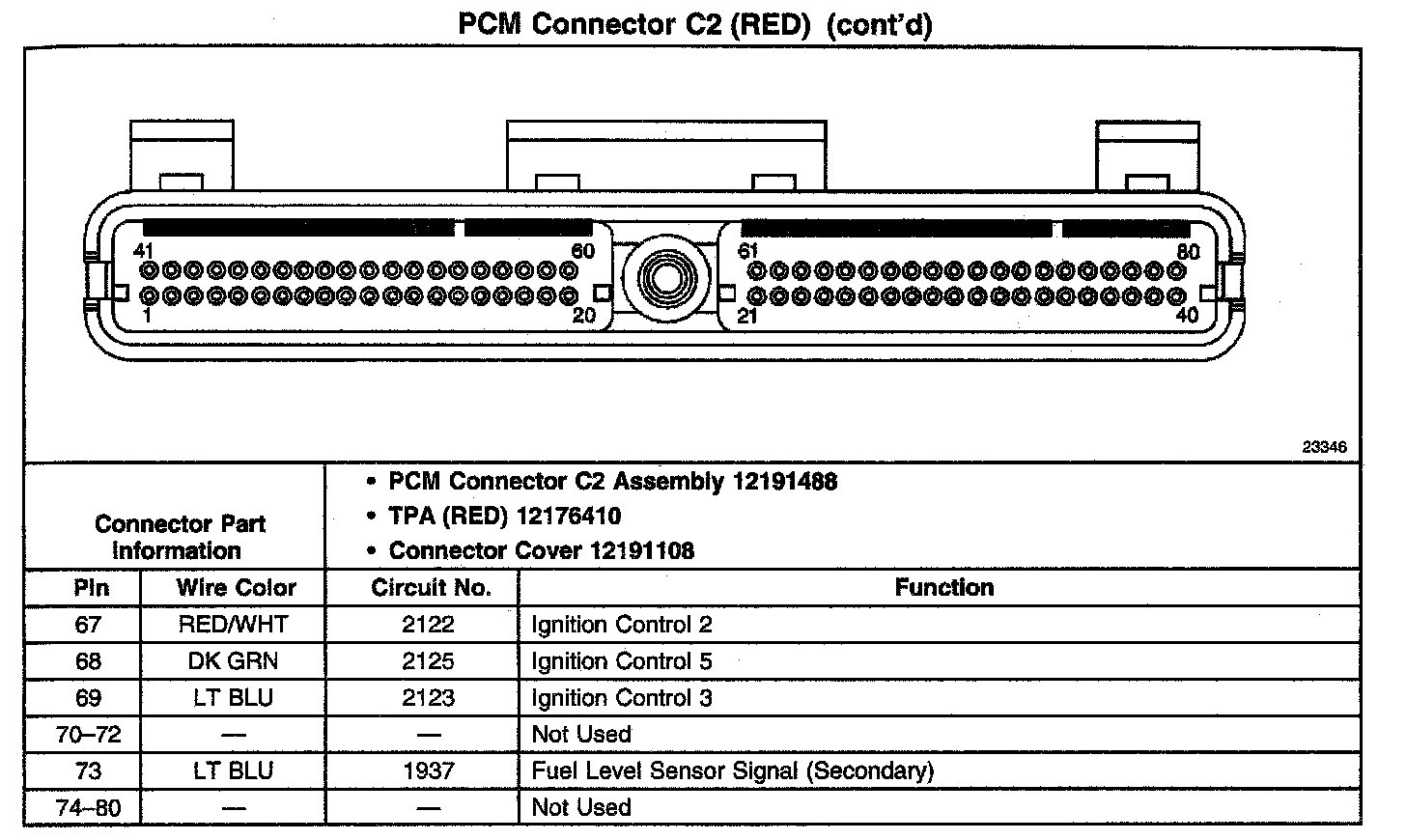

PCM Connector C2 (RED) - Part 3 Of 3:
