Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block-I/P C3

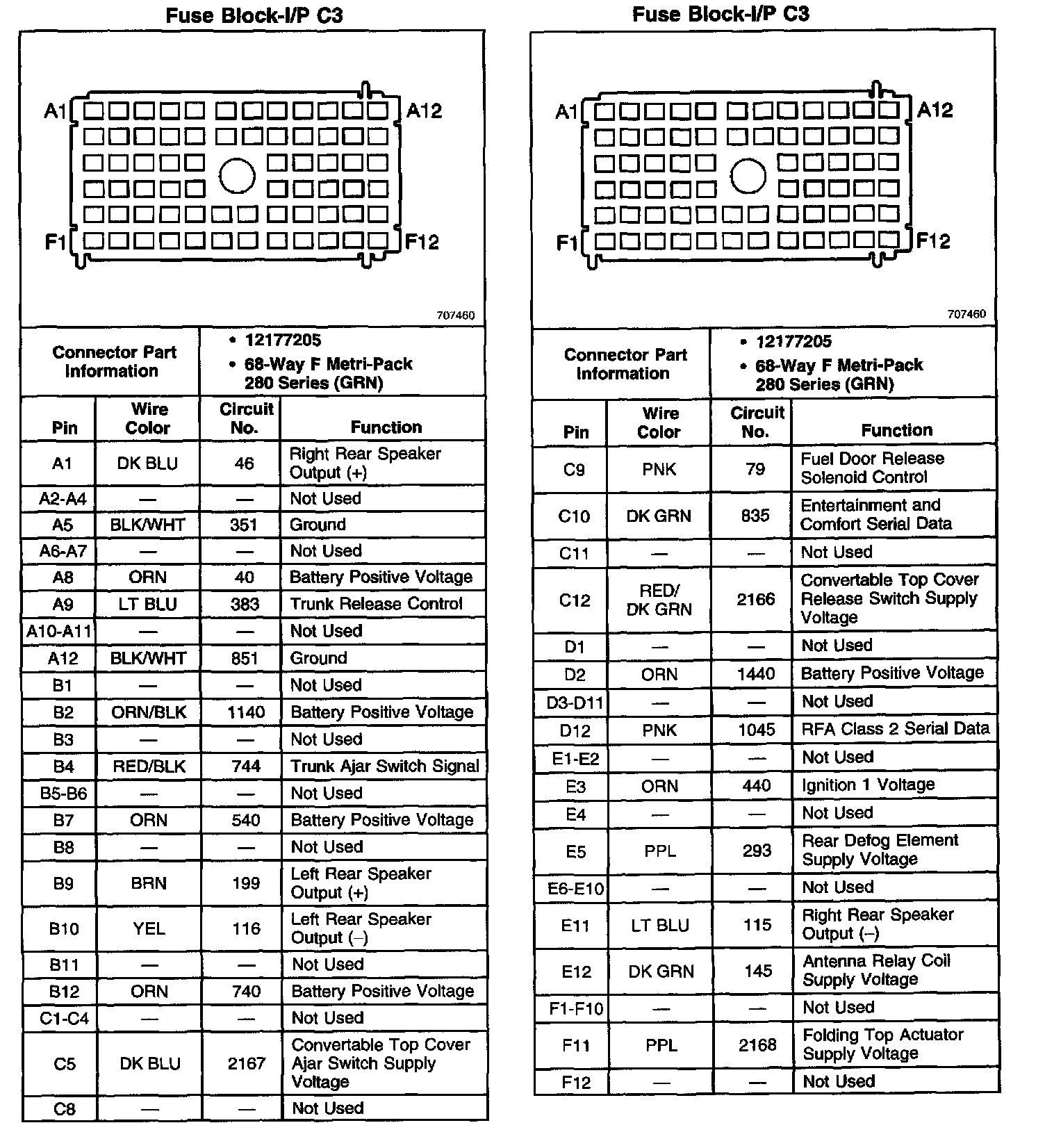

Fuse Block-I/P C3

Fuse Block-I/P C3:
