Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Sensor/Switch >> Seat Adjuster Switch-Passenger

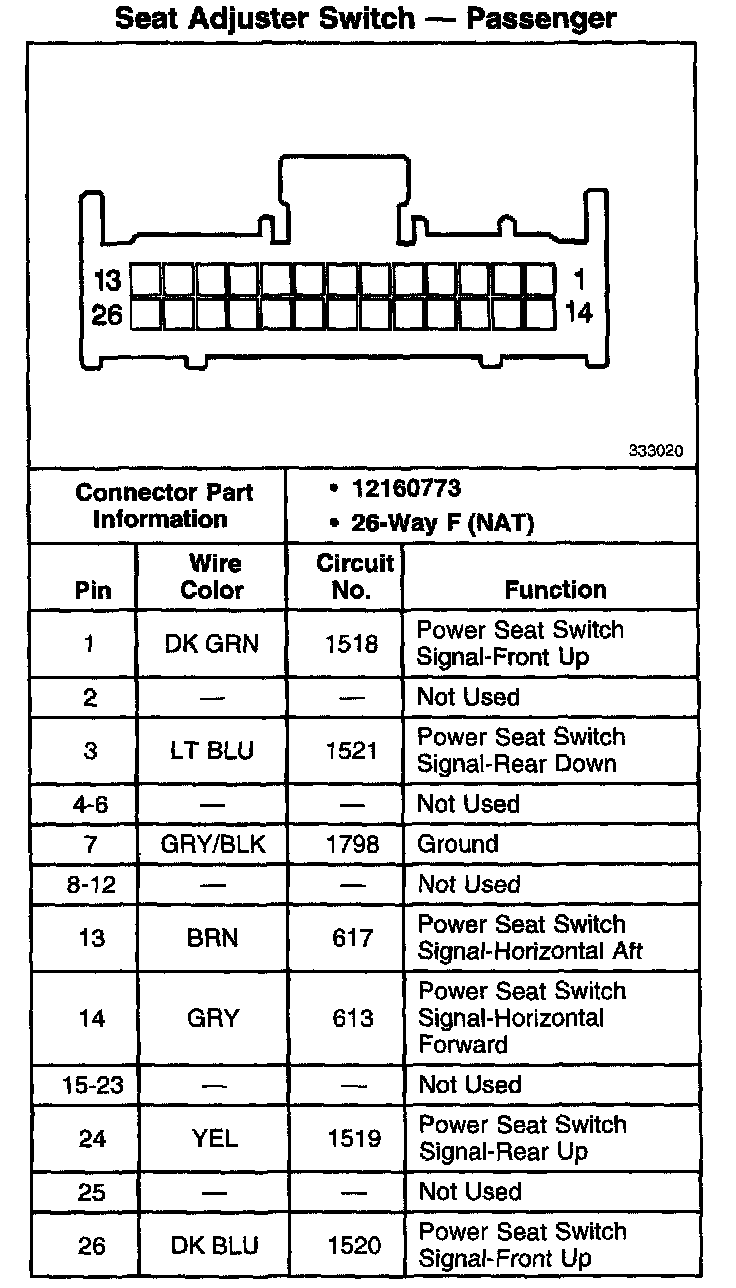

Seat Adjuster Switch-Passenger

Seat Adjuster Switch - Passenger:
