Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Driver C2 (Telescopic and Memory)

Driver C2 (Telescopic and Memory)

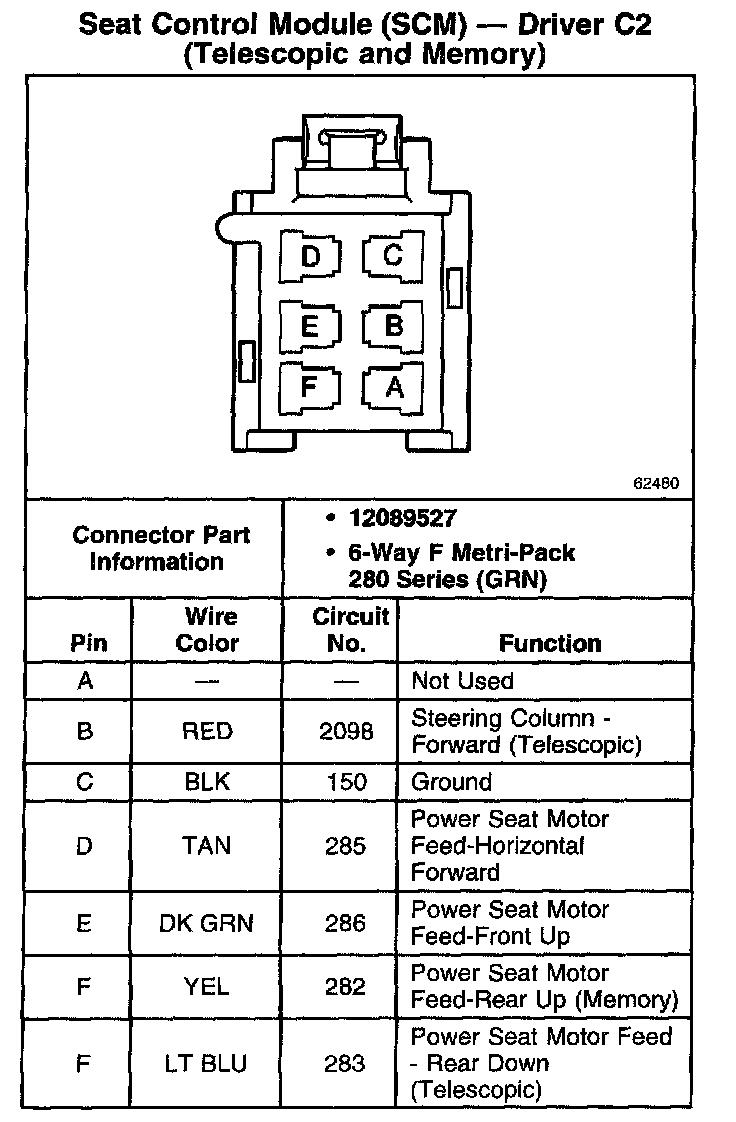

Seat Control Module (SCM) - Driver C2 (Telescopic And Memory):
