Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Memory Seats Schematics
>>
LH Seat Control Module W/O Telescoping Steering Column
LH Seat Control Module W/O Telescoping Steering Column

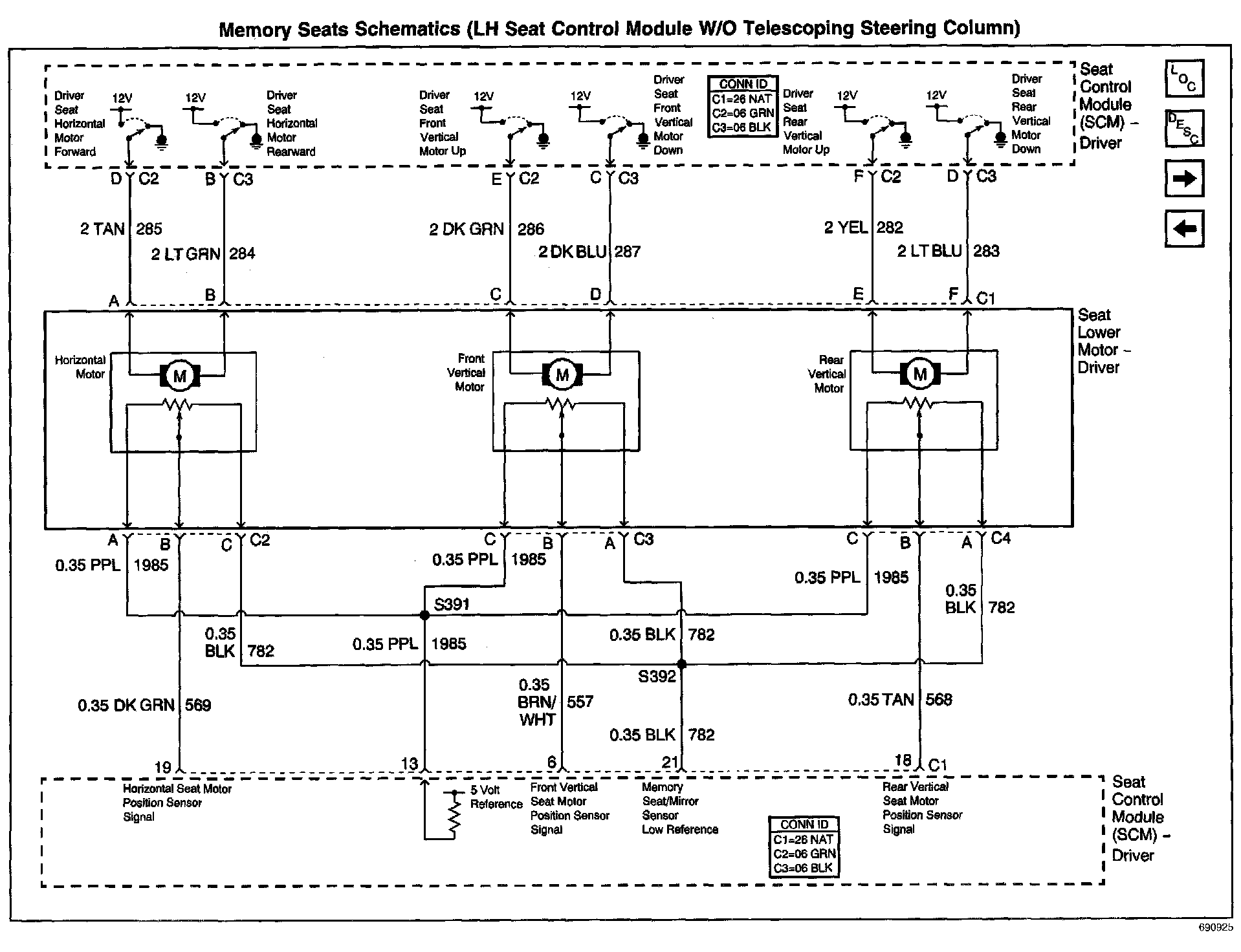

Memory Seats Schematics: LH Seat Control Module W/O Telescoping Steering Column:
