Inlet

Radiator Hose Replacement- Inlet

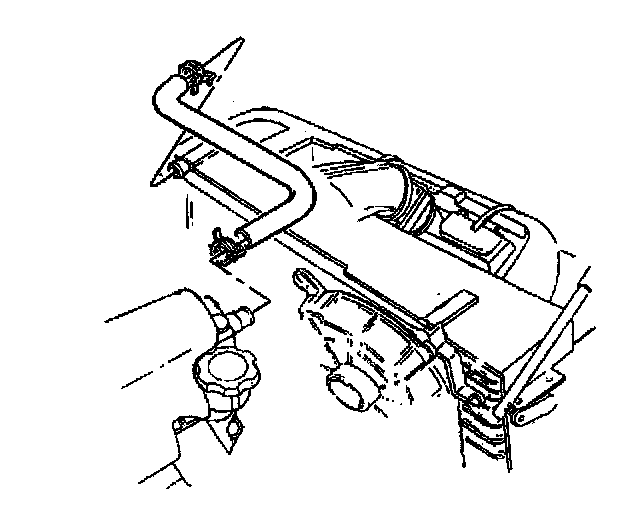

Removal Procedure





1. Drain the cooling system.
2. Remove the radiator upper support.
3. Reposition the radiator inlet hose clamps at the radiator and water pump.
4. Remove the radiator inlet hose from the radiator and water pump.

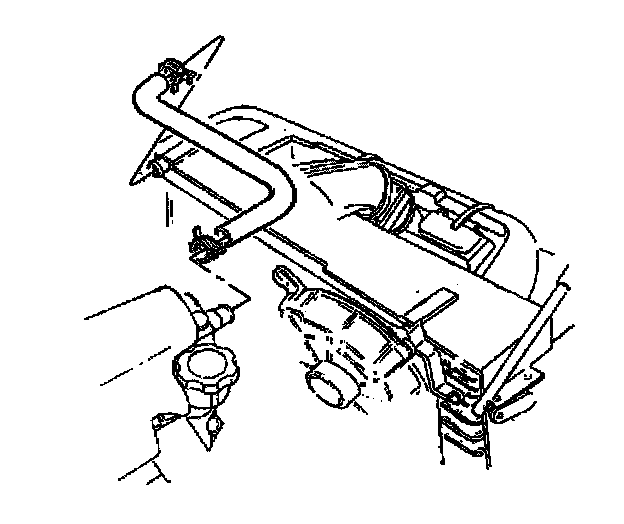

Installation Procedure





1. Install the radiator inlet hose to the radiator and water pump.
2. Reposition the radiator inlet hose clamps at the radiator and water pump.
3. Install the radiator upper support.
4. Fill the cooling system.
