Home
>>
Chevrolet
>>
2001
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Indicator Control
Indicator Control

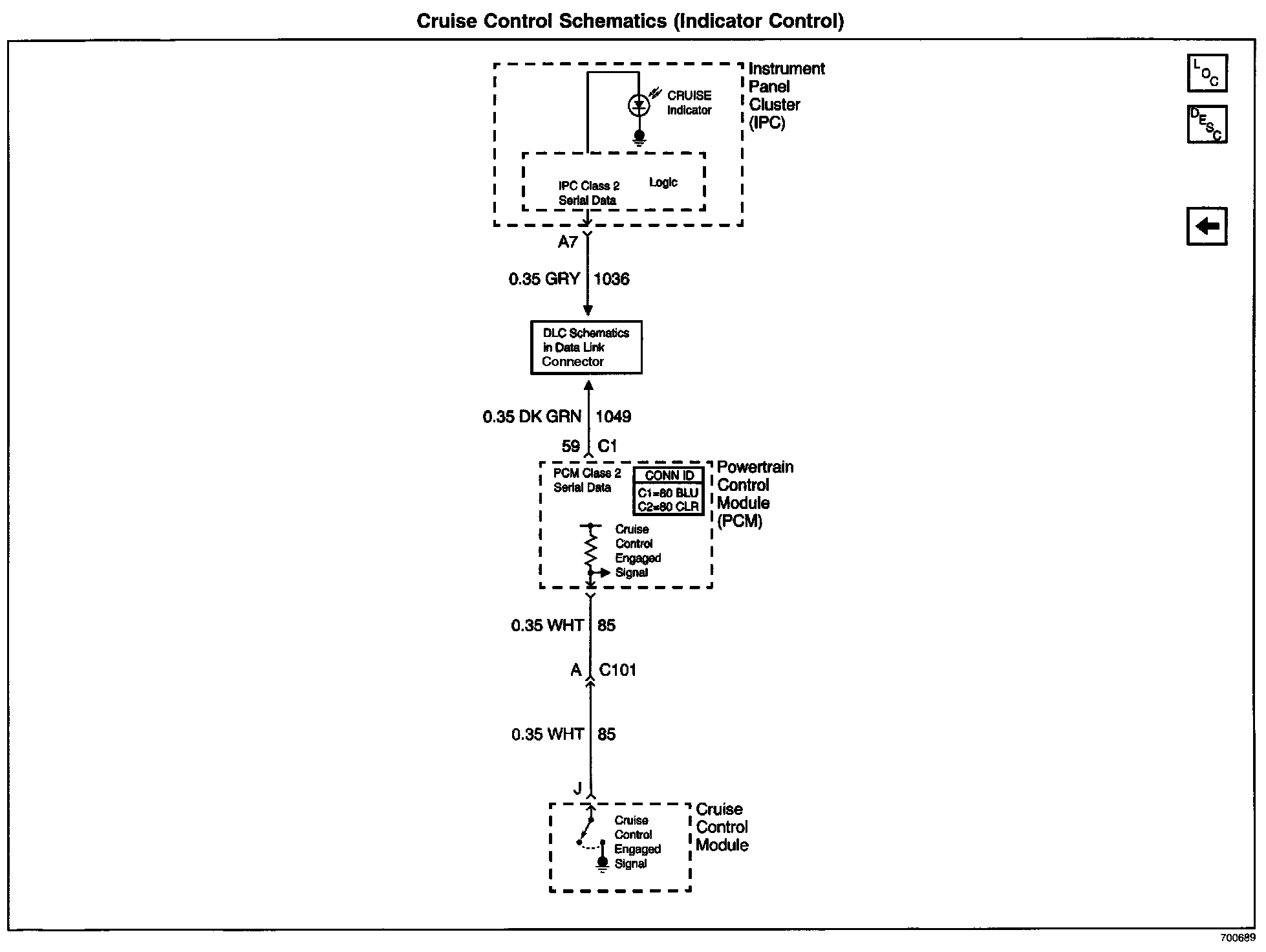

Cruise Control Schematics: Indicator Control:
