Horn Assembly

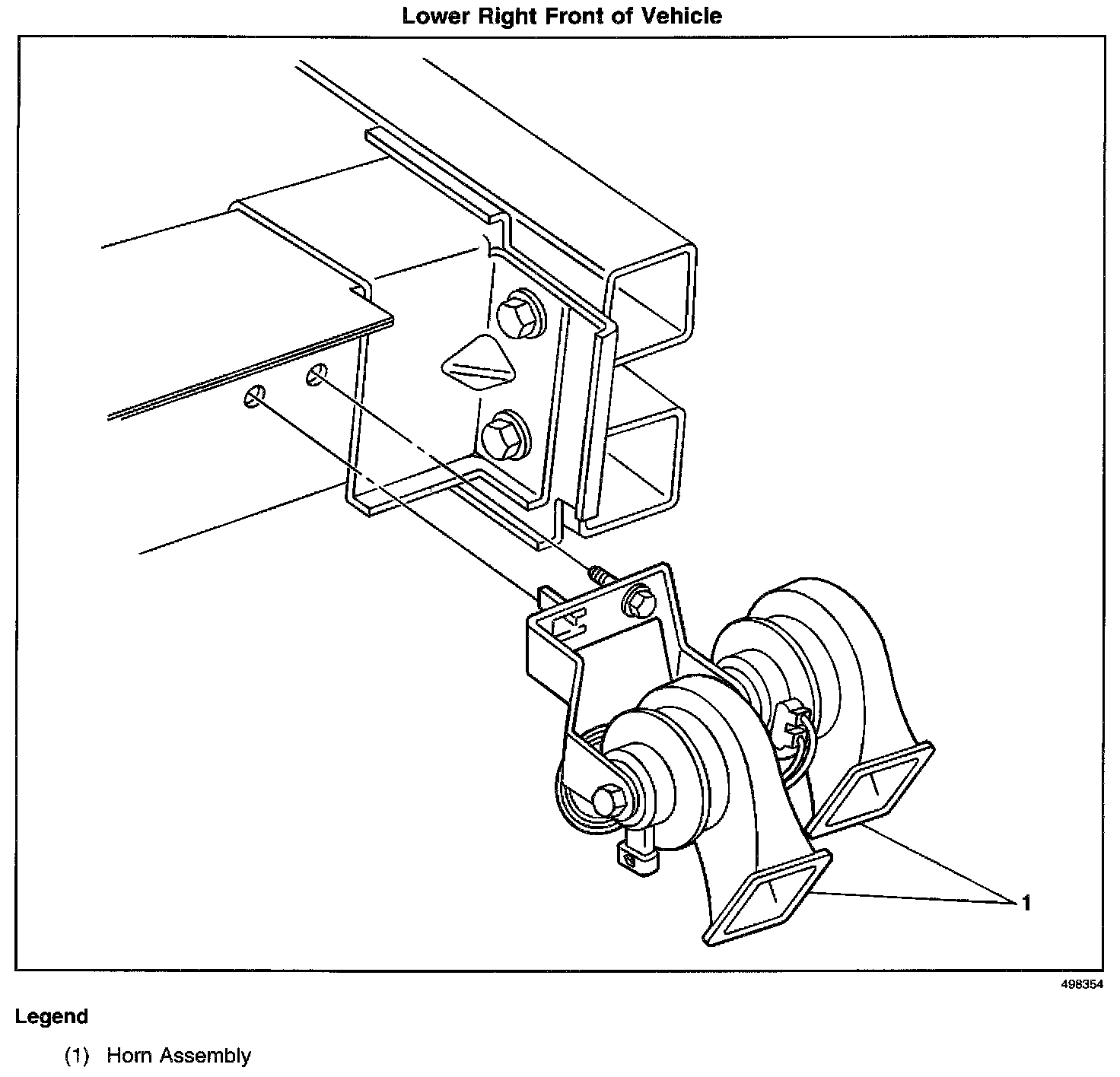

Locations View:

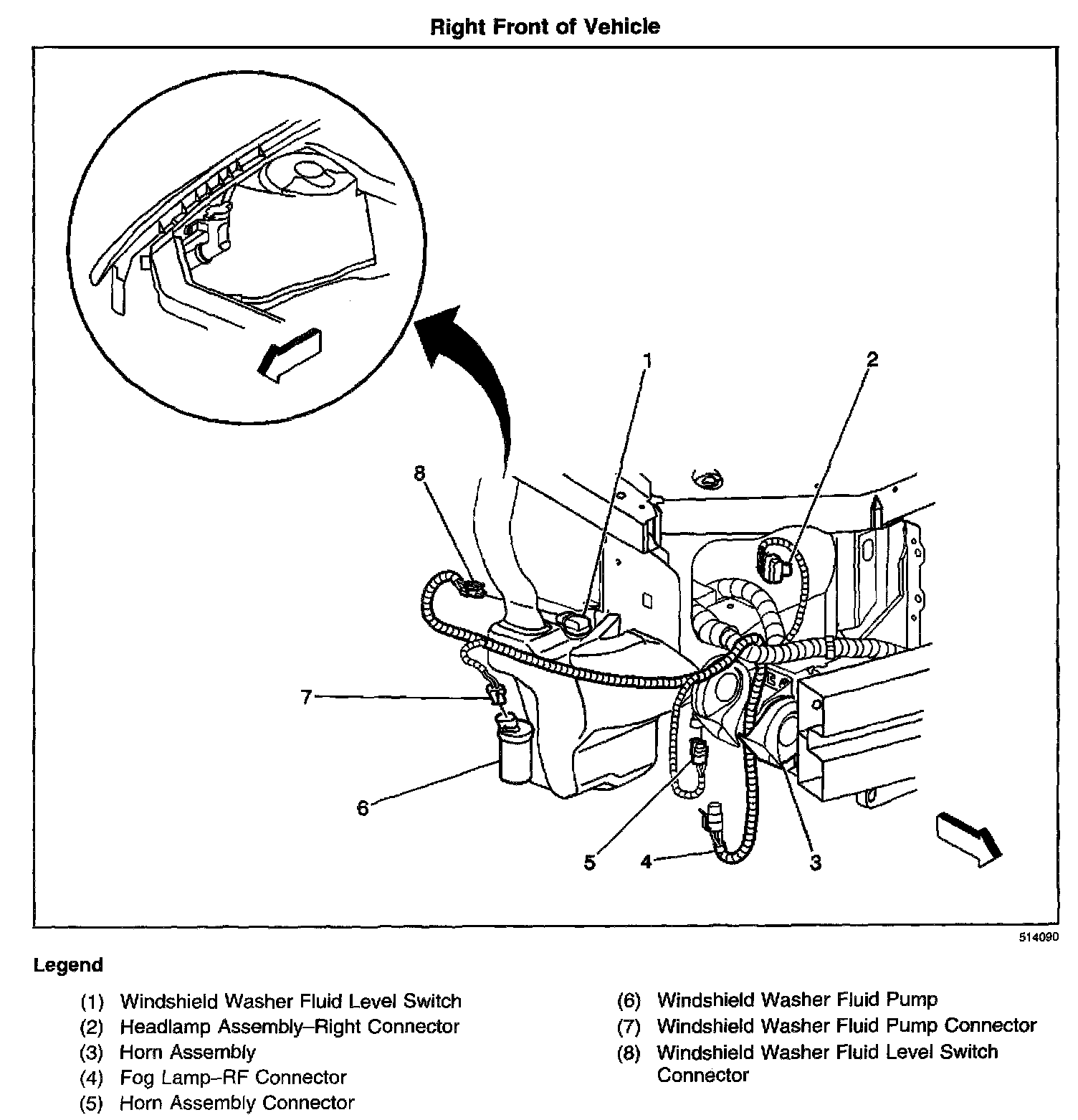

Locations View:




Front of the vehicle, below the right headlamp assembly, outside of the right frame rail
