Steering Column - Column Shift

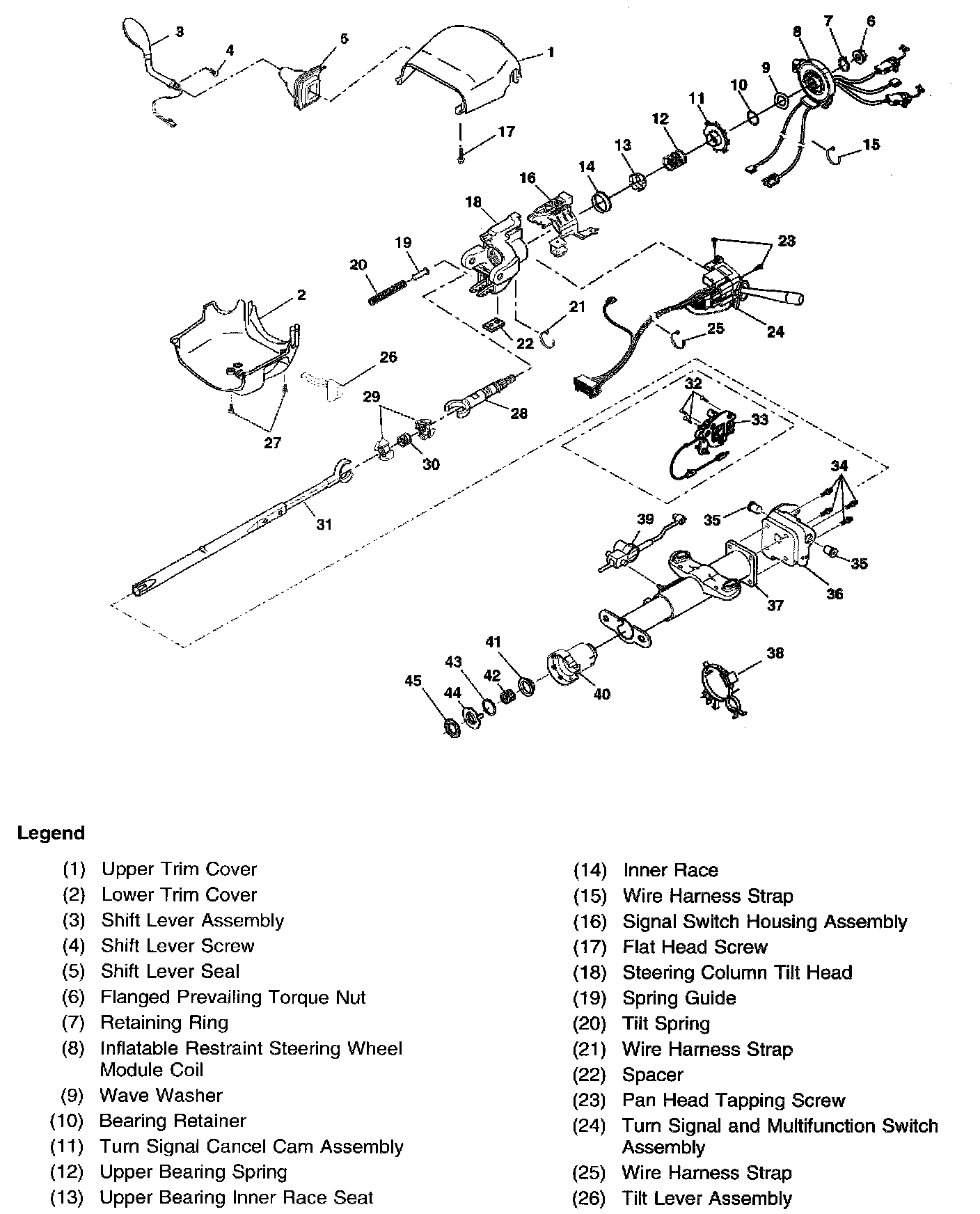

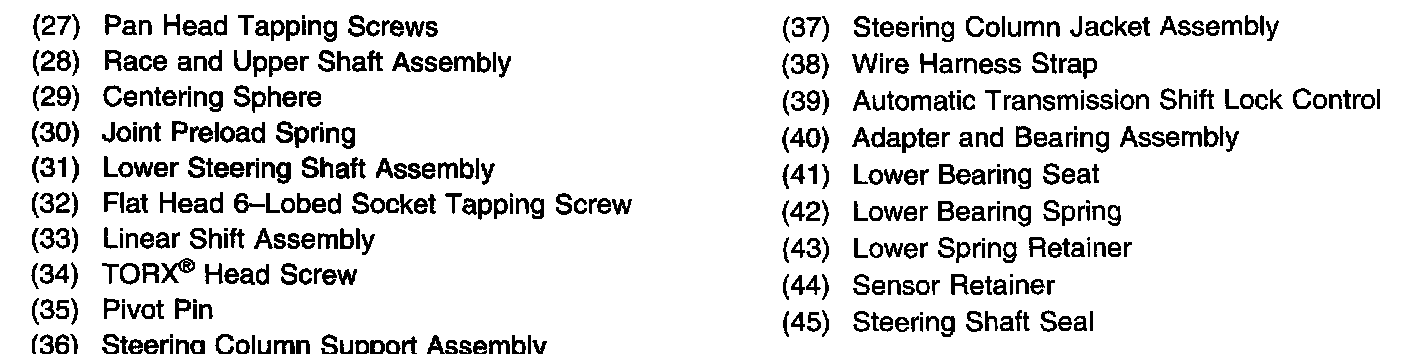

Steering Column Disassembled View (Column Shift)








Tilt Steering Column
