Steering Column - Floor Shift

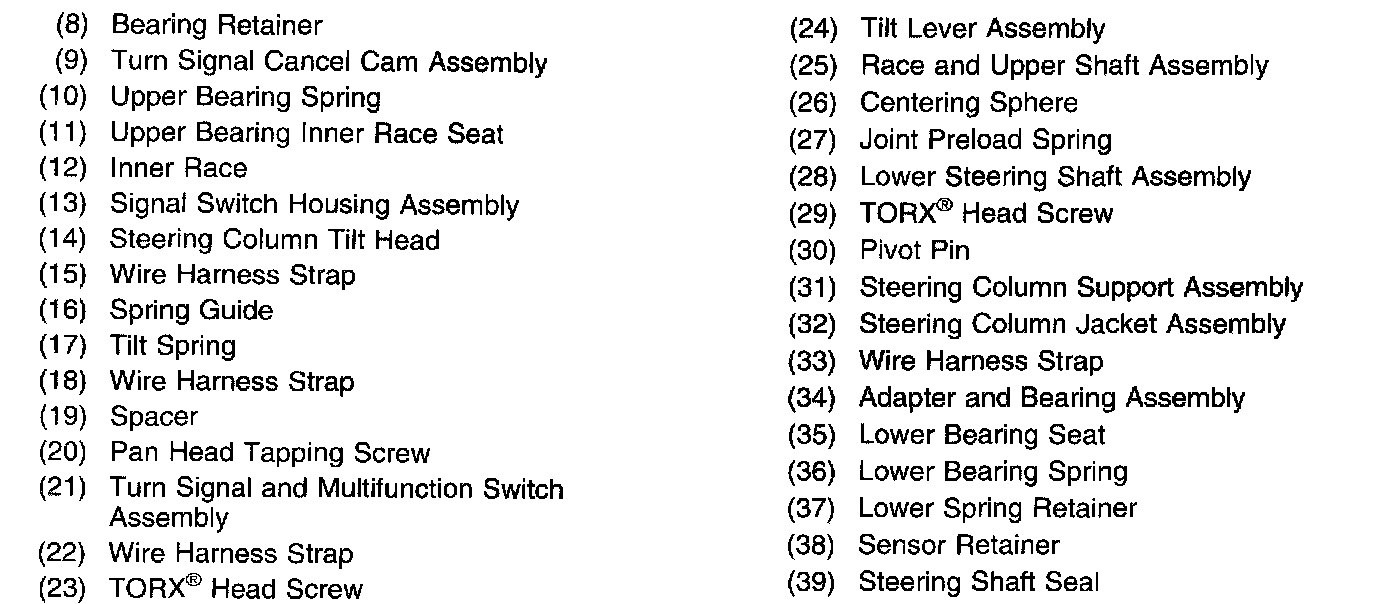

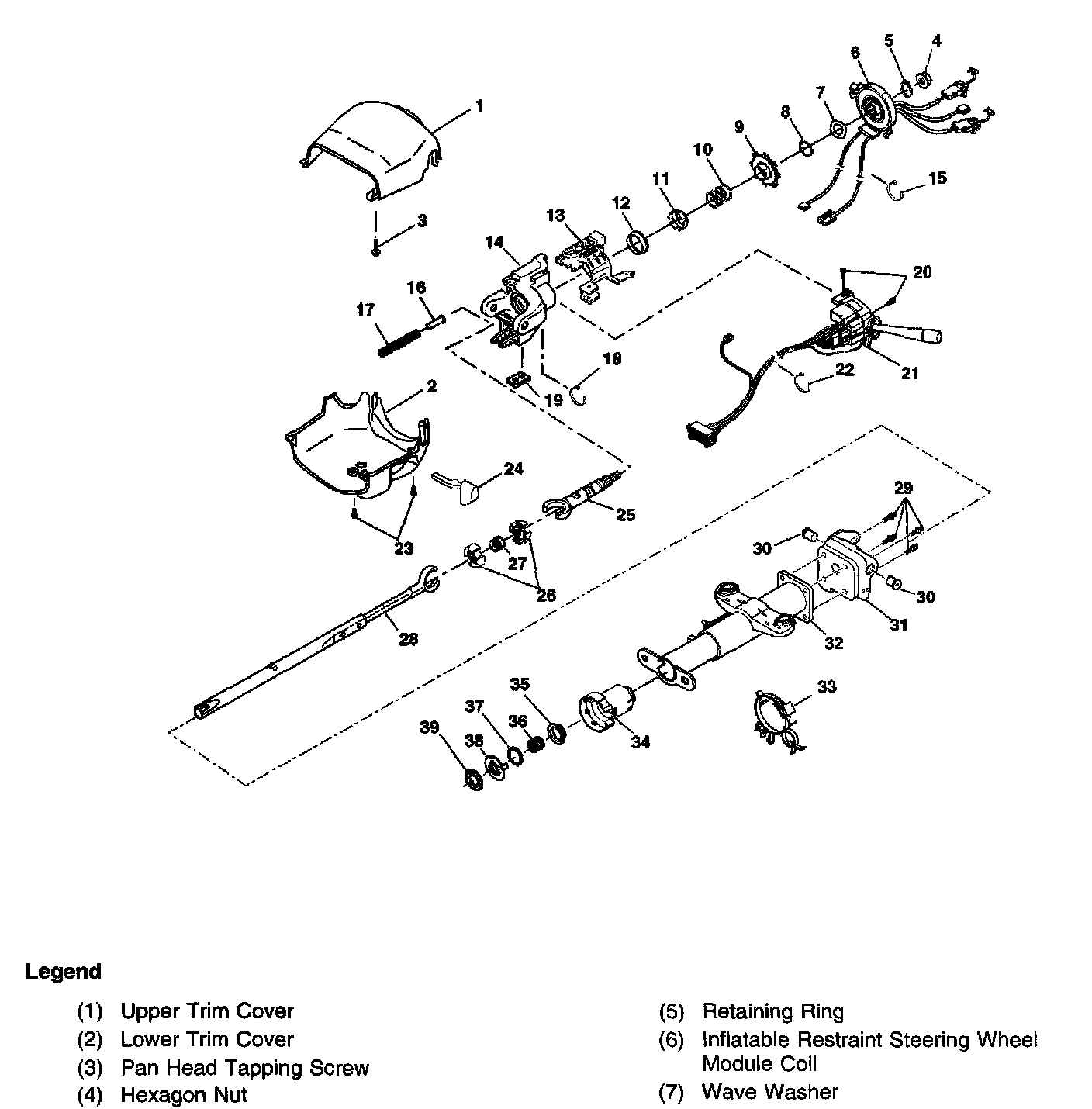

Steering Column Disassembled View (Floor Shift)








Tilt Steering Column
