Engine Flywheel Replacement
Engine Flywheel ReplacementRemoval Procedure
1. Remove the automatic transaxle.
2. Secure the flywheel in order to prevent rotation.
3. Loosen the six engine flywheel bolts.
4. Remove five of the six flywheel bolts leaving one bolt at the top of the crankshaft rotation.
5. Grip the flywheel and remove the remaining bolt. Do not drop the flywheel when removing the final bolt.

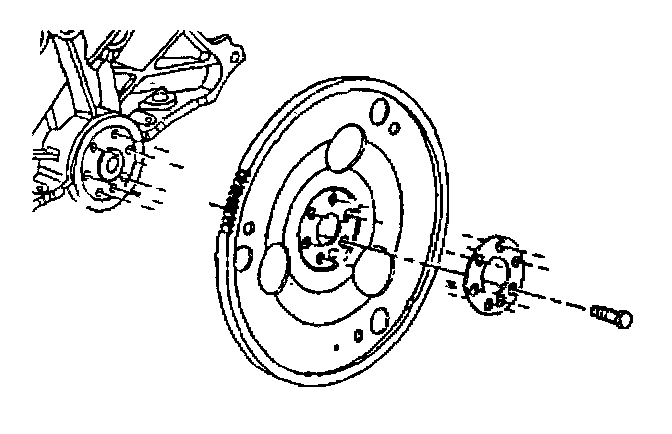

6. Remove the engine flywheel and the flywheel retainer.
7. Clean the engine flywheel bolt threads and bolt holes.
Installation Procedure
1. Install the flywheel retainer and the flywheel.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the flywheel bolts.
- Tighten the flywheel bolts to 71 Nm (52 ft. lbs.).
3. Install the automatic transaxle.
