Window Channel Retainer Replacement - Front Door

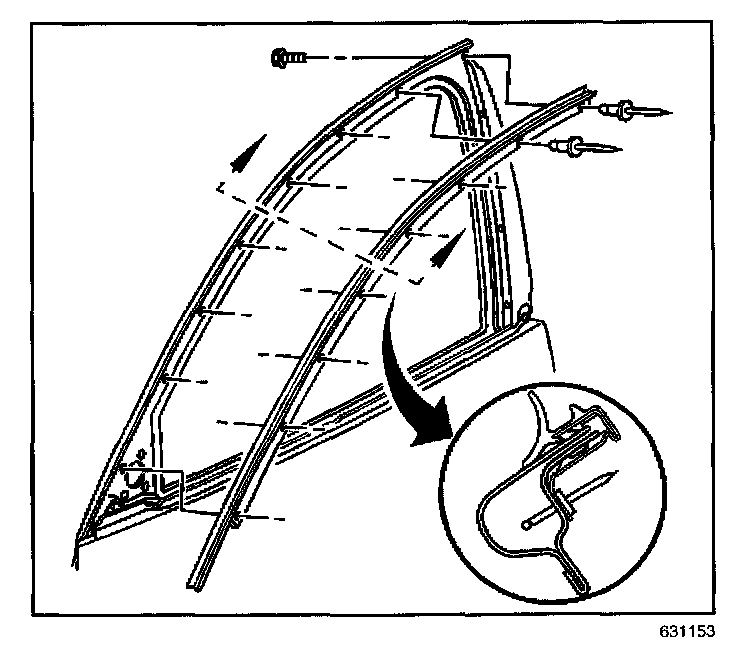

REMOVAL PROCEDURE




1. Remove the outside rearview mirror.
2. Pull down the front door window channel in order to gain access to the rivets.
3. Loosen the front door frame applique screws.
4. Drill out the rivets.
5. Remove the front door window channel retainer from the front door.

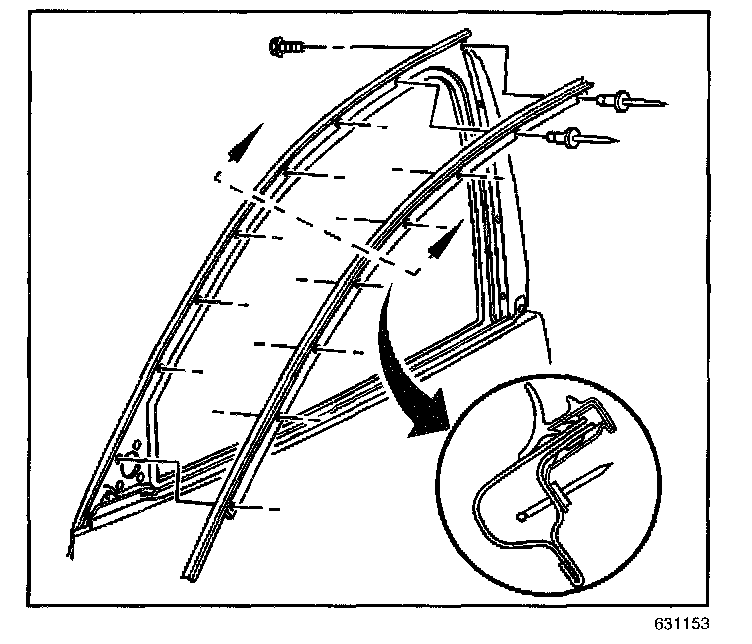

INSTALLATION PROCEDURE




1. Position the front door window channel retainer to the front door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the window channel retainer rivets.
3. Tighten the front door frame applique screws.
4. Install the front door window channel in position.
5. Install the outside mirror.
