Home >> Chevrolet >> 2001 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Door Lock-Driver, C1

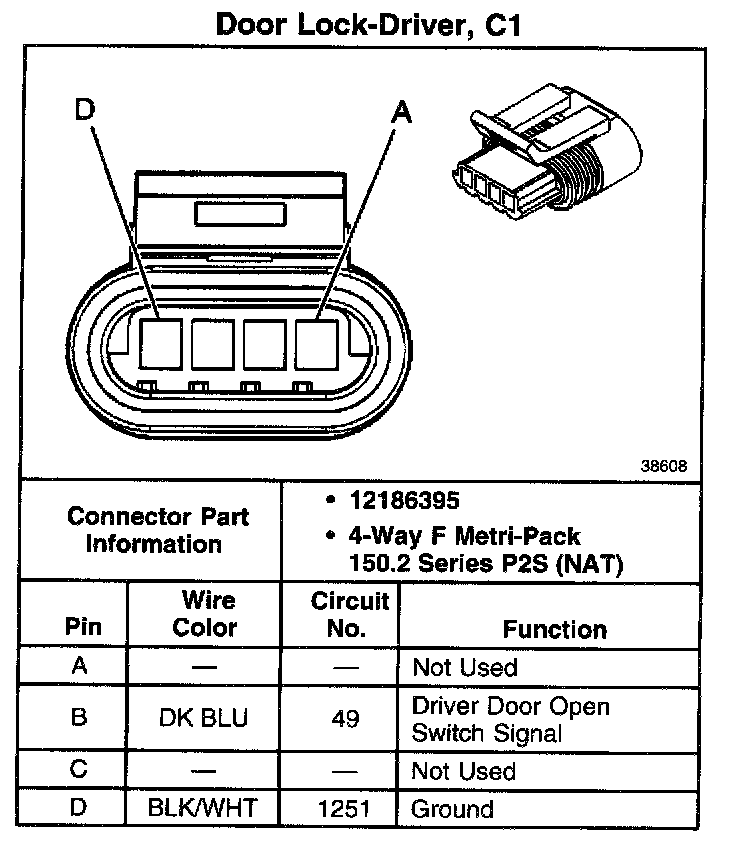

Door Lock-Driver, C1

Door Lock-Driver, C1:
