Air Bag Control Module: Diagrams

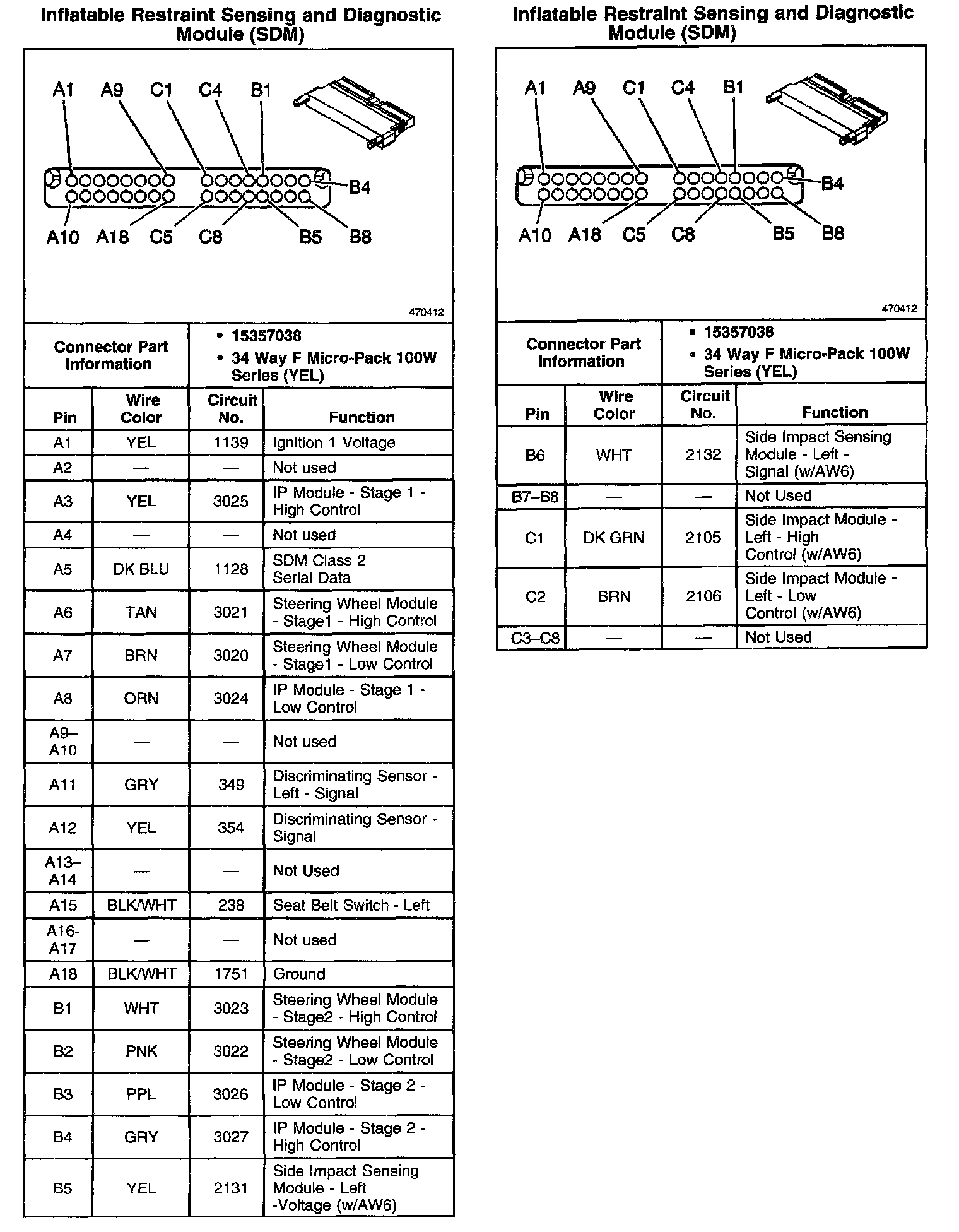

Inflatable Restraint Sensing And Diagnostic Module (SDM):

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
