Home >> Chevrolet >> 2001 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Engine Coolant Level Indicator Module

Engine Coolant Level Indicator Module

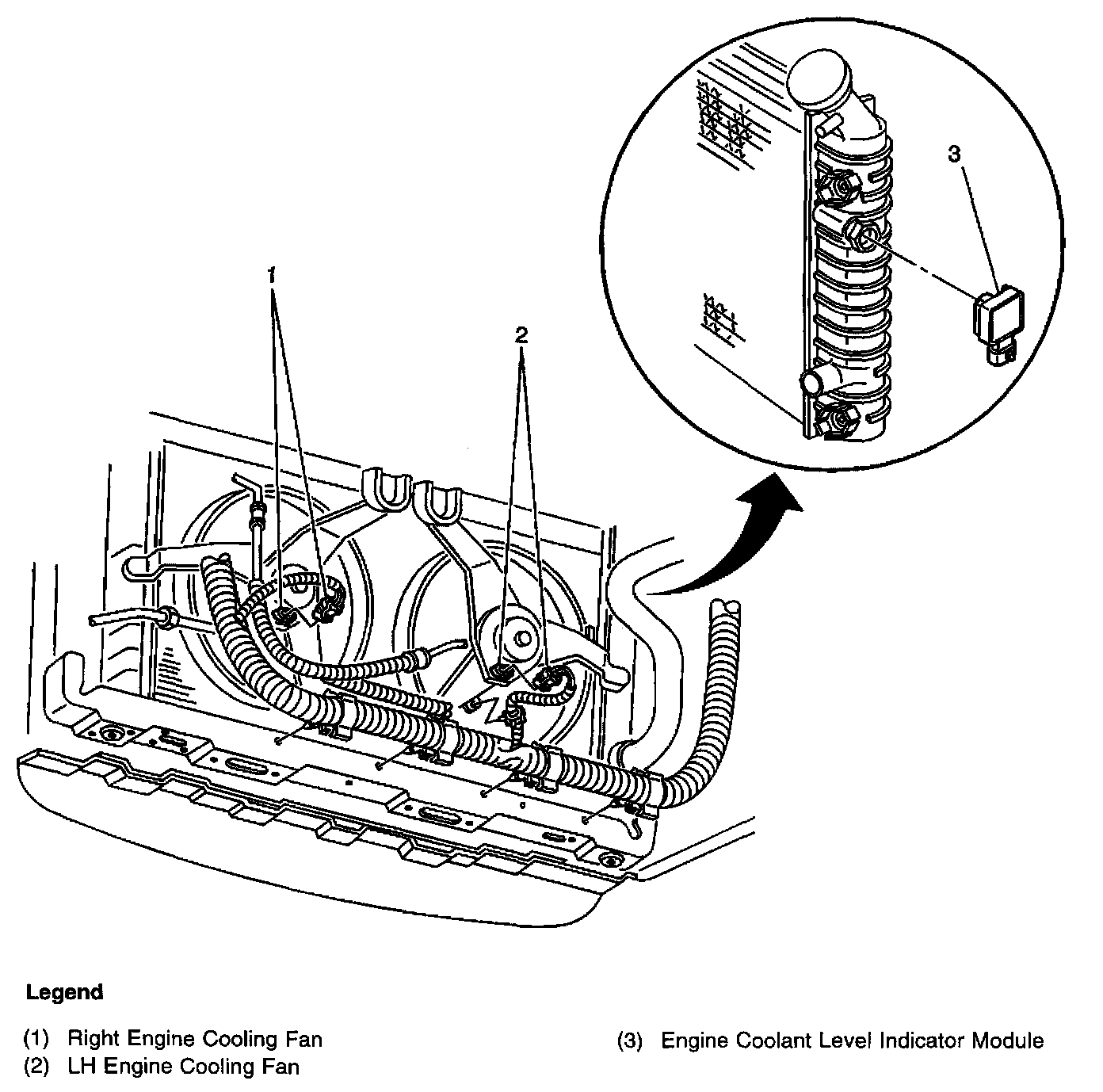

Locations View (RPO LG8):

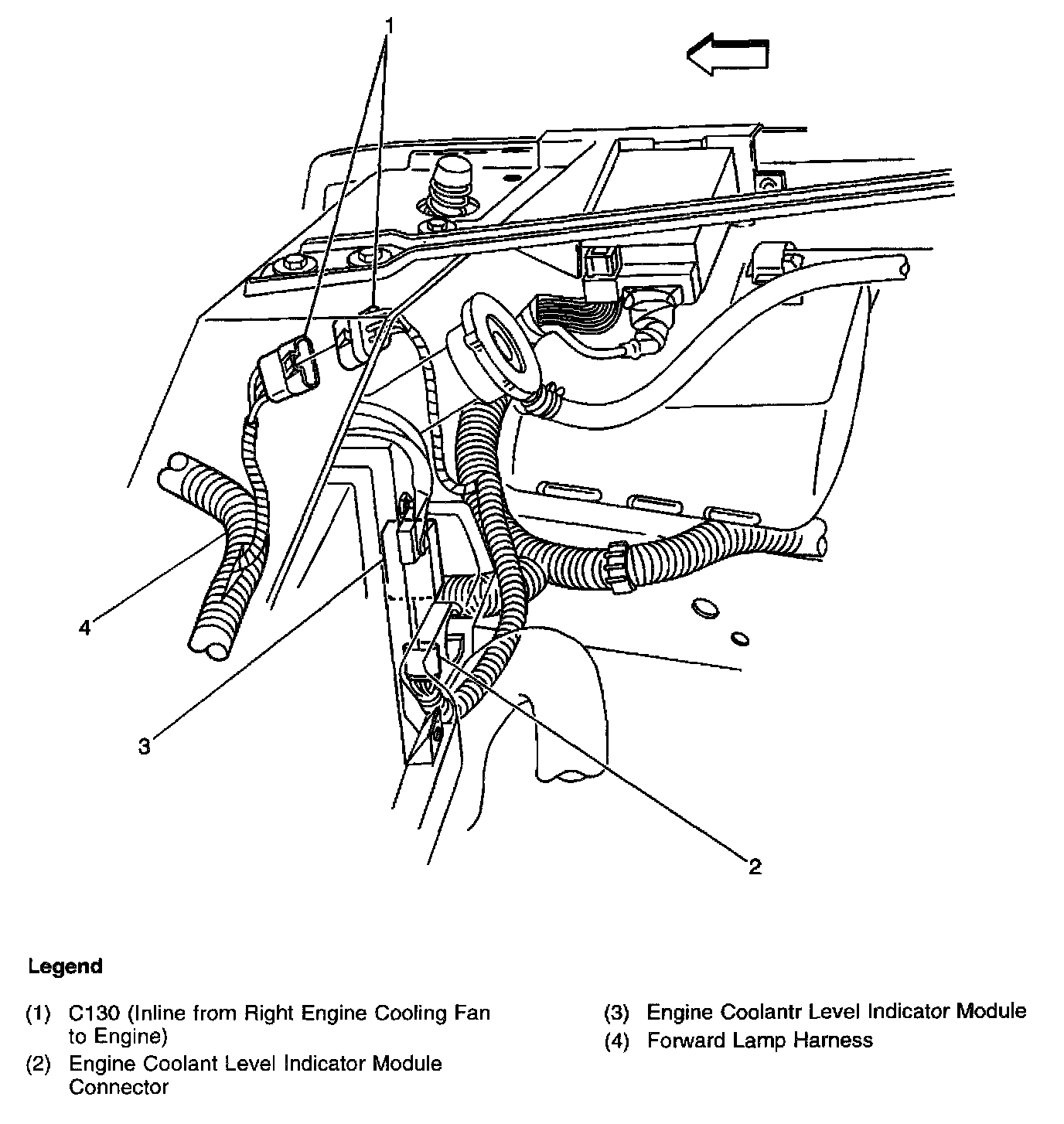

Locations View:




Right side of the radiator
