Scan Tool Testing and Procedures

Refer to Engine Controls Schematic Power I/P, DLC and Ground, and DLC Schematic in Data Link Communications.

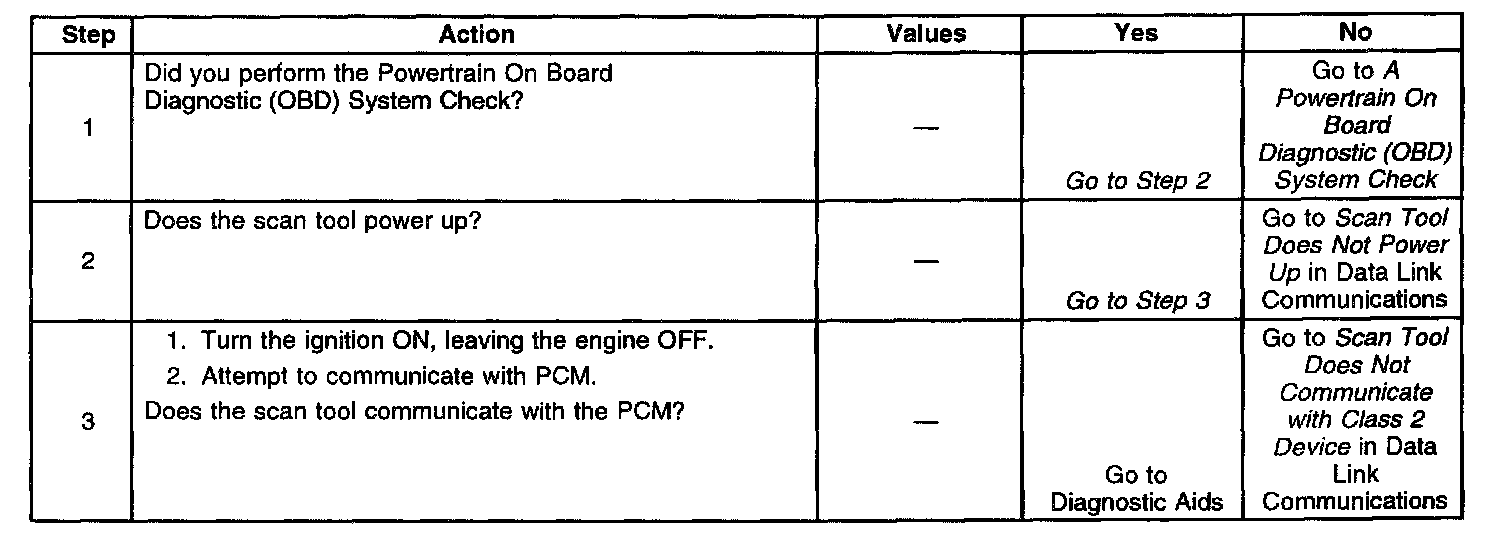

Diagnostic Chart:

CIRCUIT DESCRIPTION
The Class II serial data circuit to the DLC allows bi-directional communication between the PCM and the scan tool. If communication between the scan tool and the PCM cannot be established, the procedure in the DLC Diagnosis table should be used to diagnose the condition.

DIAGNOSTIC AIDS
Inspect the following items:

IMPORTANT: Remove any debris from the connector surfaces before servicing a component. Inspect the connector gaskets when diagnosing or replacing a component. Ensure that the gaskets are installed correctly. The gaskets prevent contaminate intrusion.

^ Poor terminal connection.
Inspect the harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and faulty terminal to wire connection. Use a corresponding mating terminal to test for proper tension. Refer to Testing for Intermittent and Poor Connections and Connector Repairs in Diagrams.
^ Damaged harness.
Inspect the wiring harness for damage. If the harness appears to be OK, observe the display on the scan tool while moving connectors and wiring harnesses related to the sensor. A change in the display may indicate the location of the fault. Refer to Circuit Testing and Wiring Repairs in Diagrams.
^ Inspect the PCM and the engine grounds for clean and secure connections.

If the DTC is determined to be intermittent, reviewing the Failure Records can be useful in determining when the DTC was last set.
