Electronic Brake Control Relay

Removal Procedure





1. Remove the IP sound insulator panel. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges and Warning Indicators.

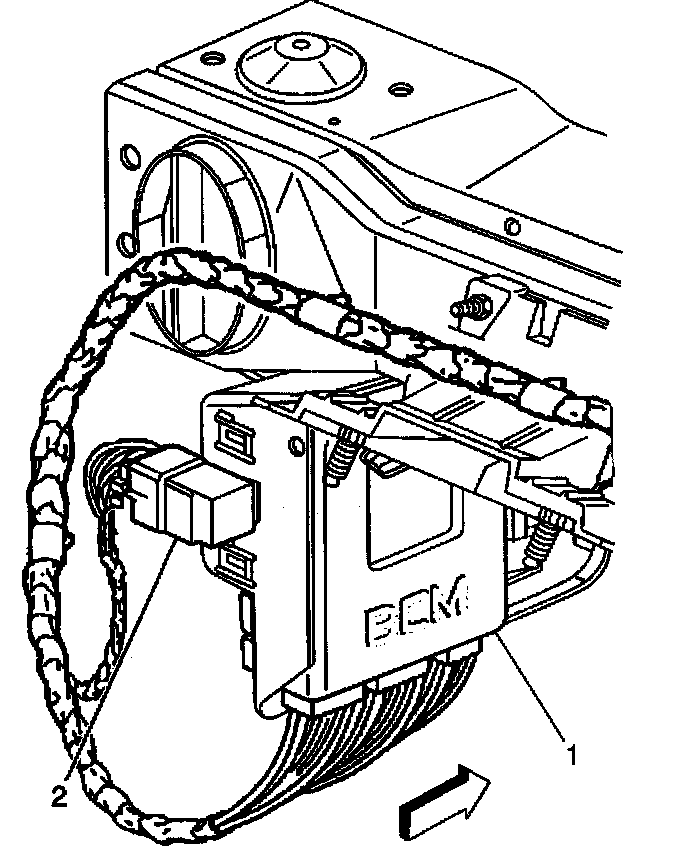

2. Release the electronic brake control relay (2) from the EBCM bracket (1).
3. Remove the electronic brake control relay connector.

Installation Procedure





1. Install the electronic brake control relay connector.
2. Slide the electronic brake control relay (2) into the EBCM bracket (1) until the electronic brake control relay is secure.
3. Install the IP sound insulator panel. Refer to Trim Pad Replacement - IP in Instrument Panel, Gauges and Warning Indicators.
