Junction Block - Right IP
Junction Block - Right IP
Locations Views:

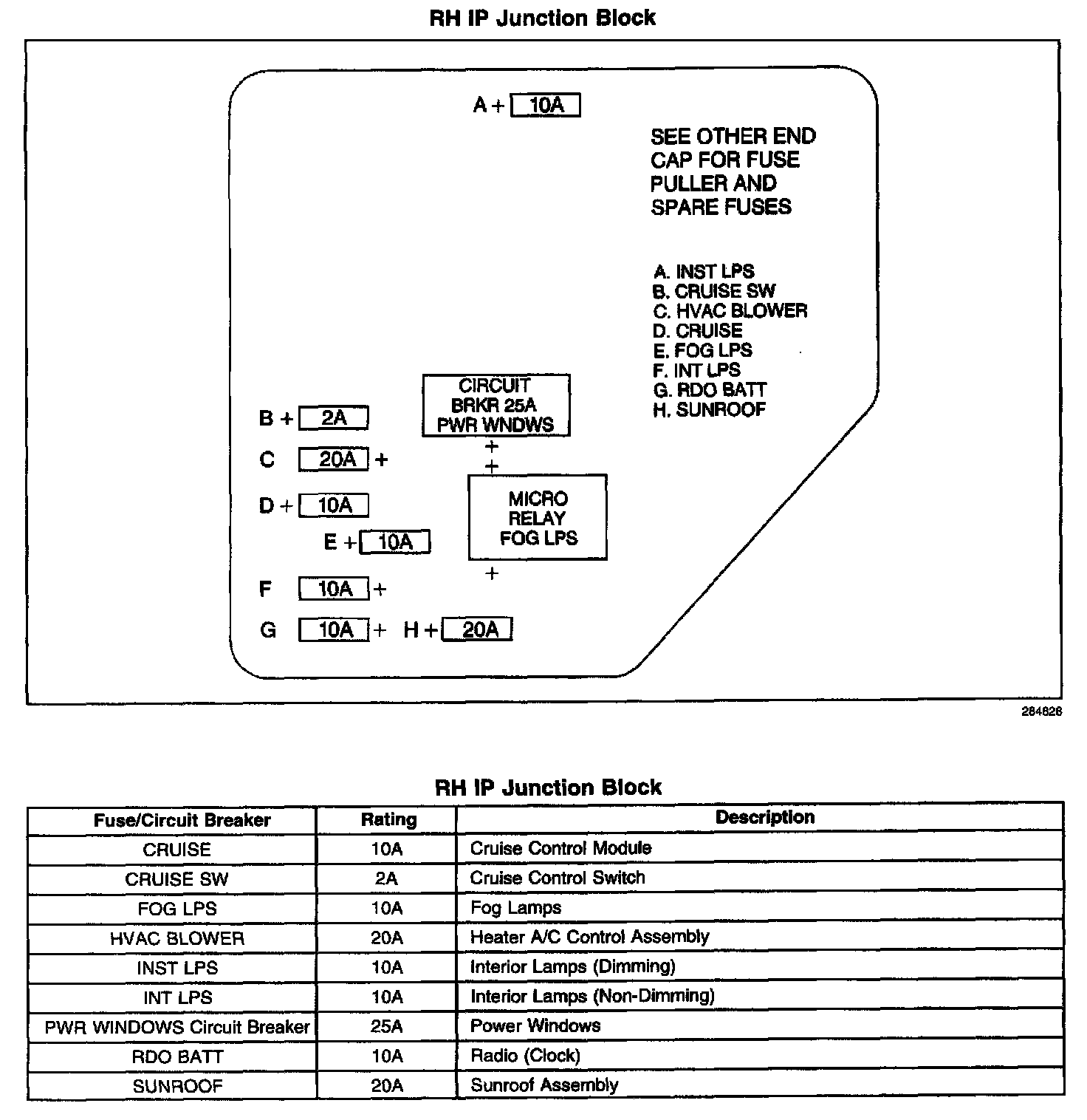

RH IP Junction Block:
Locations View:
In the right side of the passenger compartment
