Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 2001 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Junction Block Left IP, C3

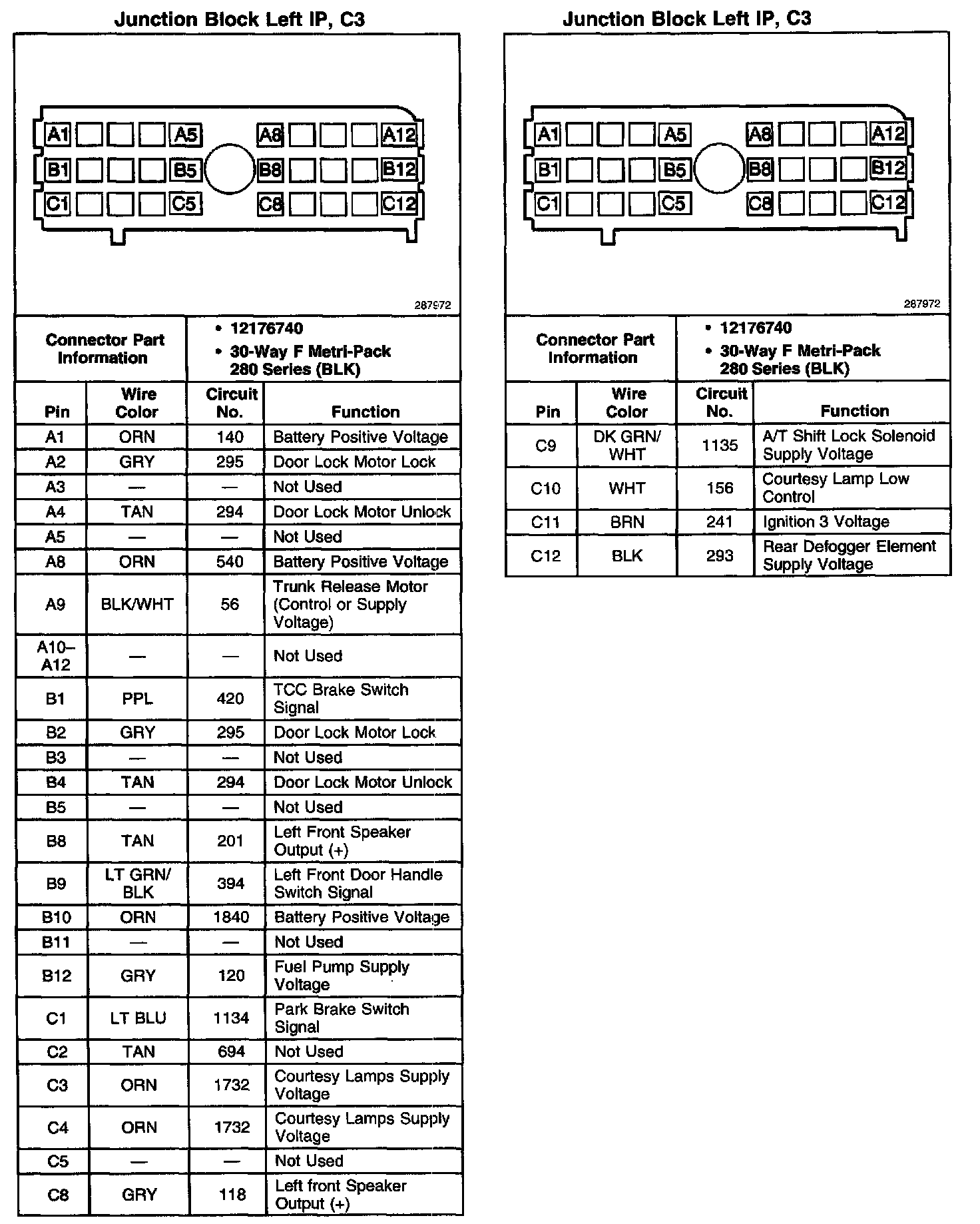

Junction Block Left IP, C3

Junction Block Left IP, C3:
