HVAC Control Assembly C1
HVAC Control Assembly C1

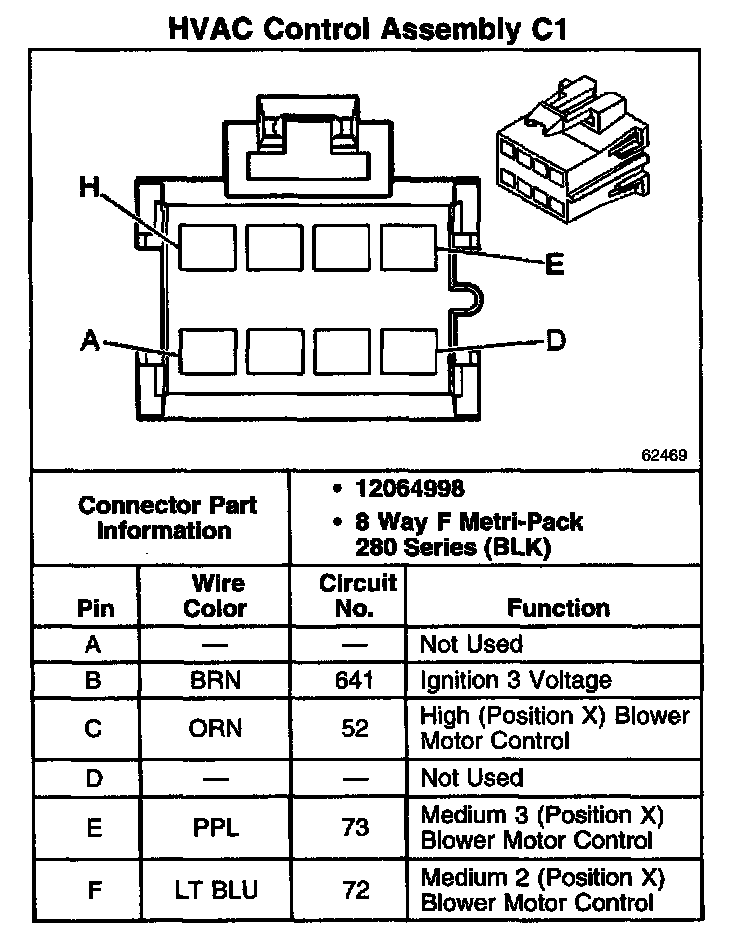

HVAC Control Assembly C1 (Part 1 Of 2):

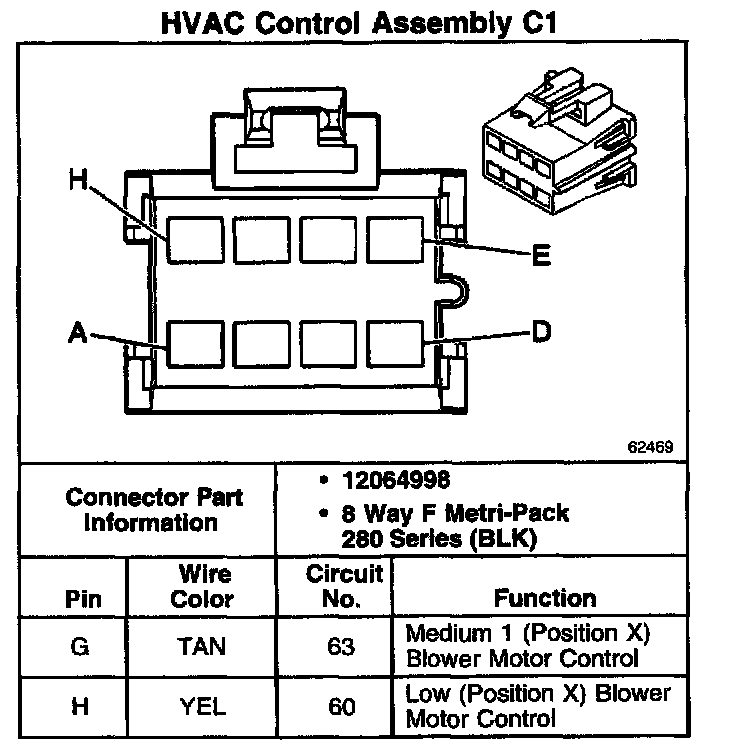

HVAC Control Assembly C1 (Part 2 Of 2):
