Window Run Channel Replacement

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Remove the outside rear view mirror.
3. Remove the front door water reflector.
4. Remove the front door outer belt sealing strip.
5. Remove the front door inner belt sealing strip.

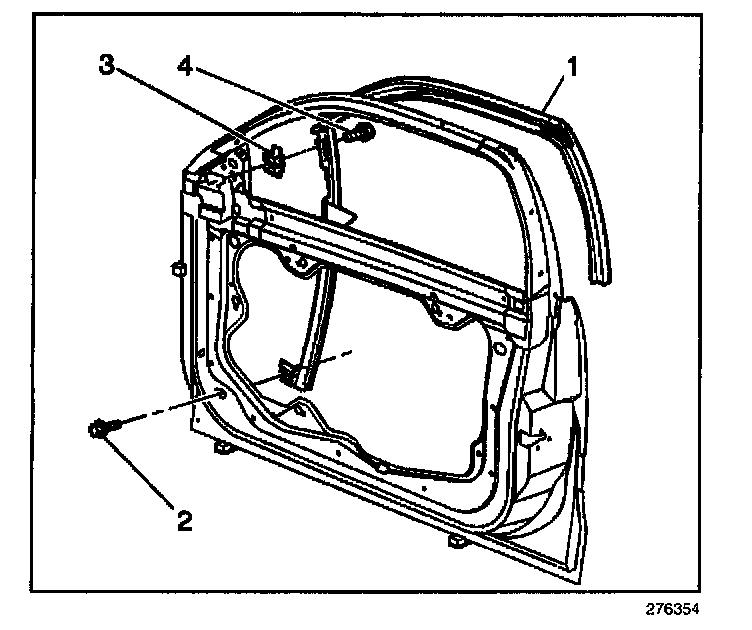

6. Remove the window channel bolts (2,4) from the window run channel (1).
7. Remove the front door window run channel (1) from the door pulling it from the window frame.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the window run channel bolts (2, 4) to the window run channel (1).

Tighten
Tighten the window run channel bolts to 10 N.m (89 lb in).

2. Install the front door inner belt sealing strip.
3. Install the front door outer belt sealing strip.
4. Install the front door water deflector.
5. Install the outside rear view mirror.
6. Install the front door trim panel.
