Power Window Switch Replacement

REMOVAL PROCEDURE

IMPORTANT: Support the front door trim panel until the power window switch is removed.




1. Remove the front door trim panel.

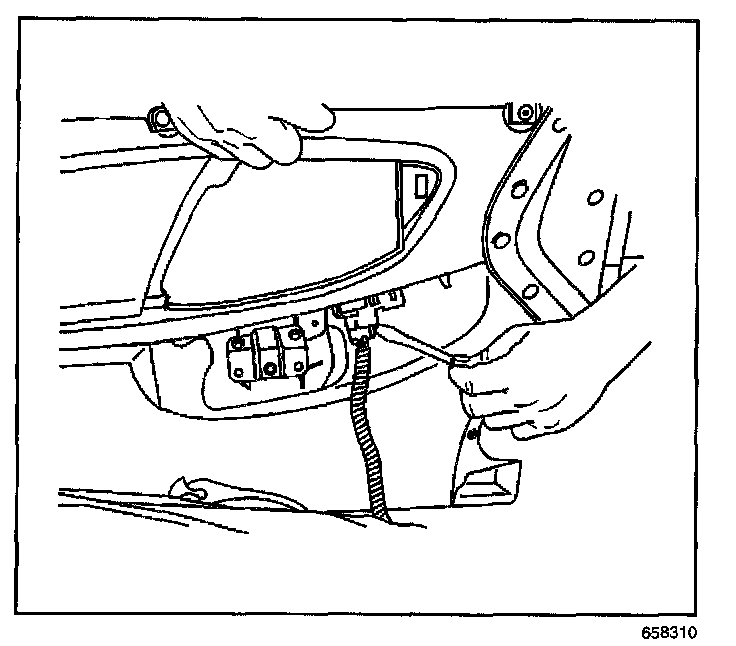

2. Disconnect the front door power window switch electrical connector by reaching around to the back of the front door panel and releasing the thumb tab retainers.
3. Remove the front door power window switch from the front door trim panel.

INSTALLATION PROCEDURE

IMPORTANT: Support the front door trim panel until the power window switch and the door panel is installed.




1. Position the front door trim panel to the front door.
2. Install the front door power window switch to the front door panel pressing into place until fully seated and locked into position.
3. Connect the electrical connector to the power window switch.
4. Install the front door trim panel.
