49. Camshaft Installation

Camshaft Installation





1. Apply clean engine oil to the following components:
- Cams
- Journals
- The oil seal
2. Install the camshaft to the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

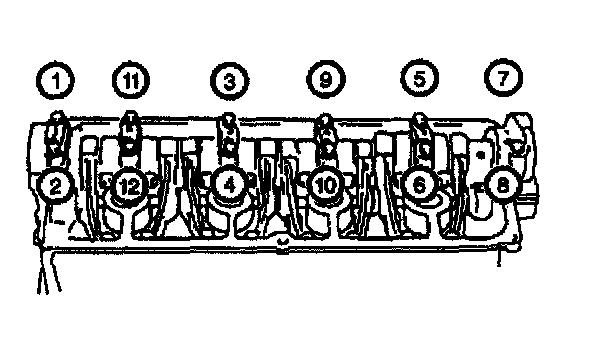

3. After applying the engine oil to the housing bolts, tighten in the sequence shown.
Tighten the camshaft housing bolts to 10 Nm (89 inch lbs.).
