Home >> Chevrolet >> 2001 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> Ignition Switch Connector - C203

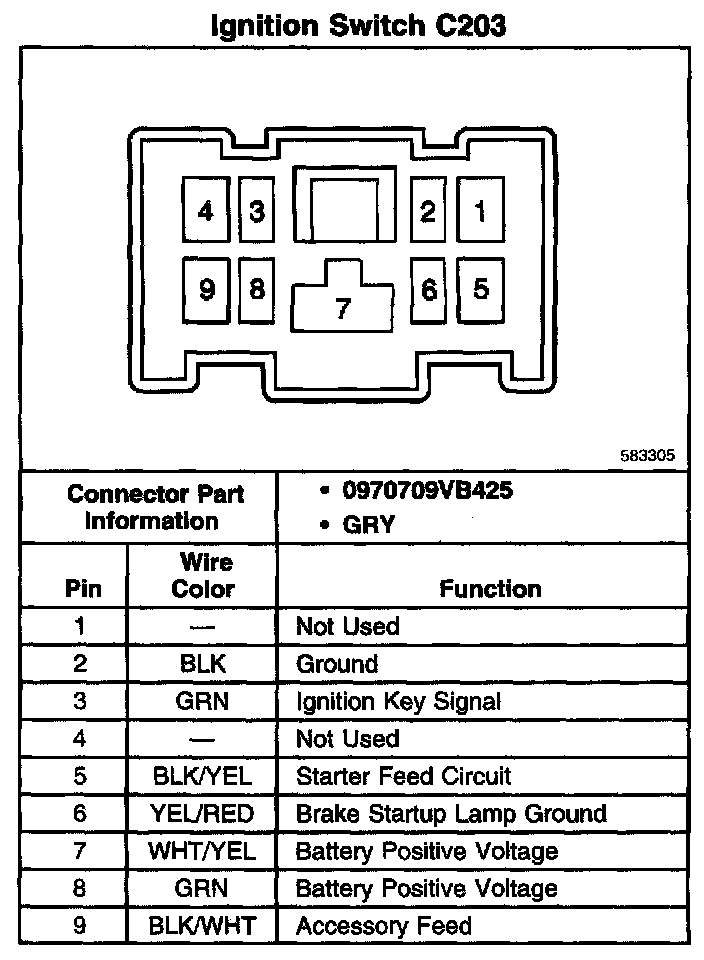

Ignition Switch Connector - C203

Ignition Switch C203:
