Home >> Chevrolet >> 2001 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> Ignition Switch Connector - C218

Ignition Switch Connector - C218

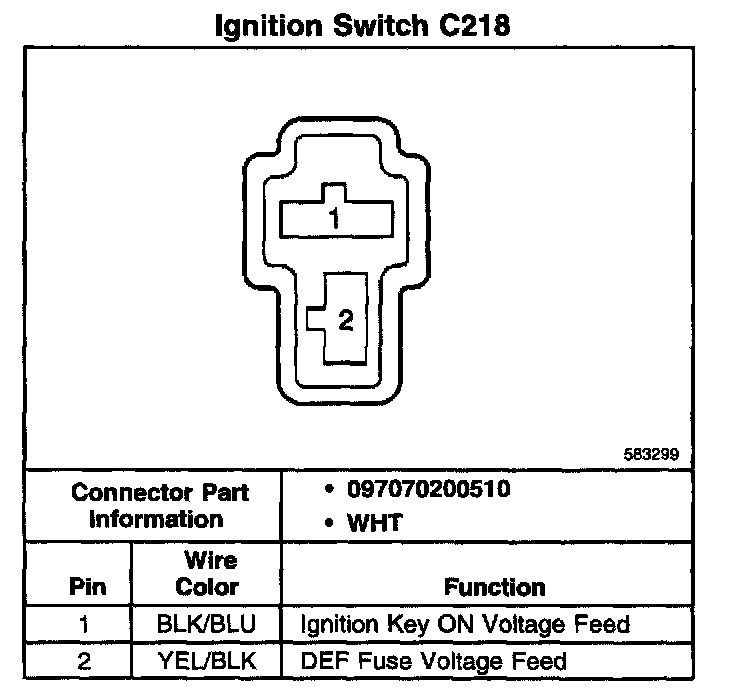

Ignition Switch C218:
