Key Lock Cylinder Switches and Door Lock Switches
Key Lock Cylinder Switches and Door Lock Switches

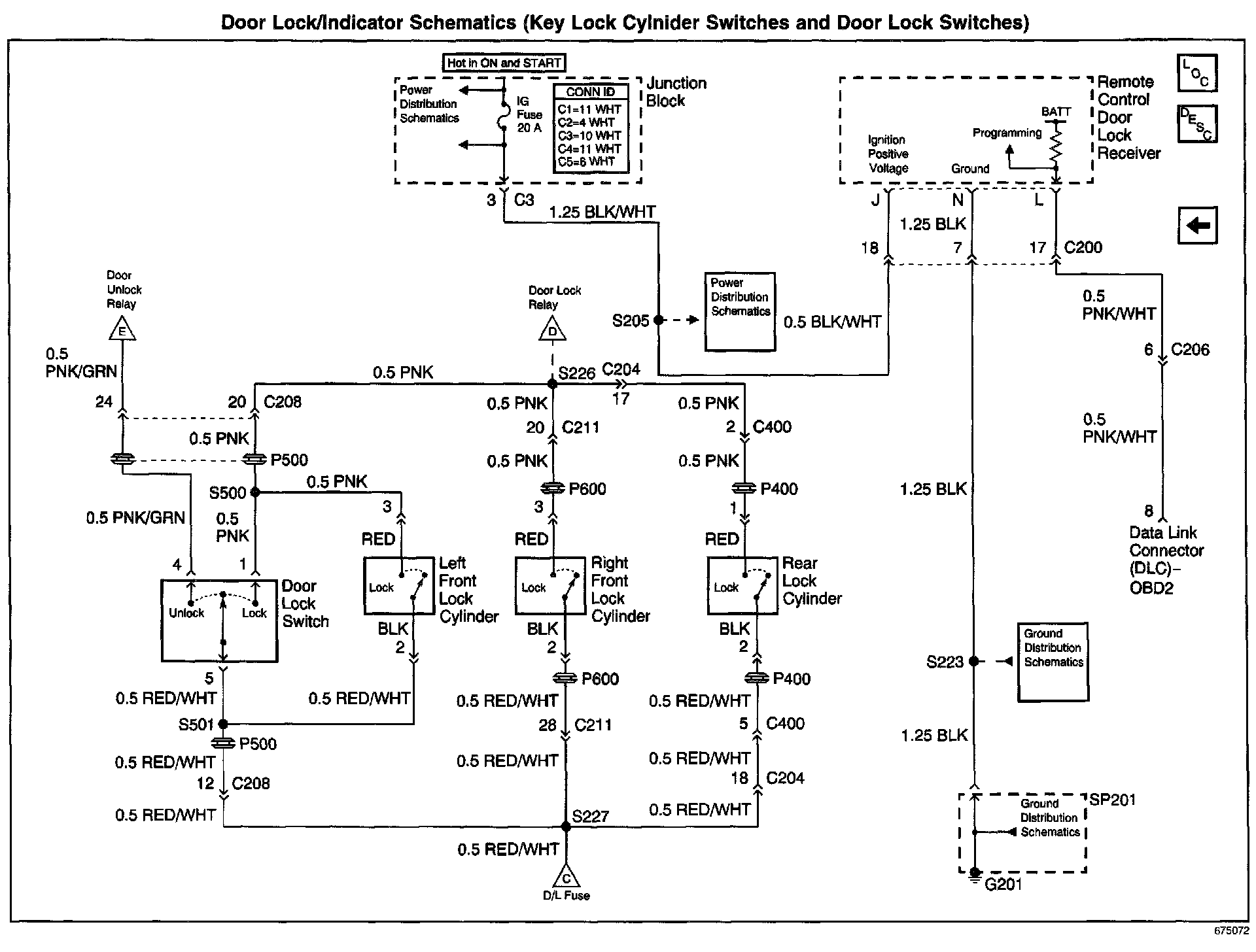

Door Lock/Indicator Schematics: Key Lock Cylinder Switches And Door Lock Switches:
