Home
>>
Chevrolet
>>
2001
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

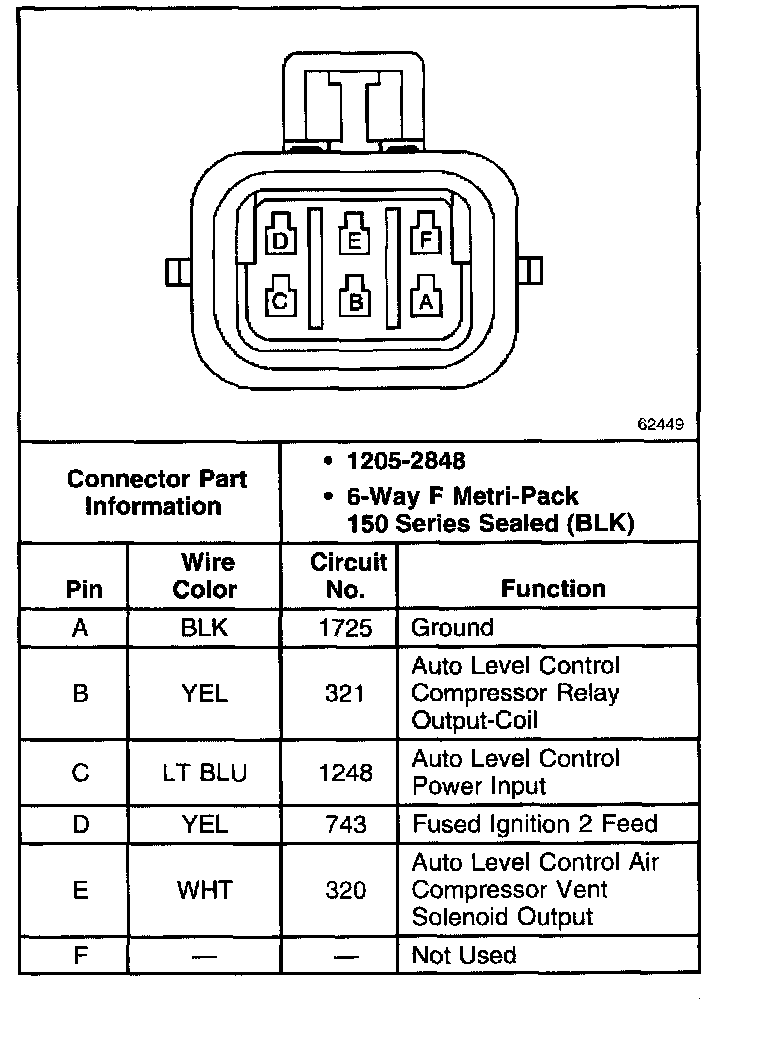

Ride Height Sensor, Suspension Control
>>
(ALC) Sensor (With Inflator)
(ALC) Sensor (With Inflator)
