Expansion Valve: Service and Repair

THERMAL EXPANSION VALVE REPLACEMENT - AUXILIARY

TOOLS REQUIRED
J 39400-A Halogen Leak Detector

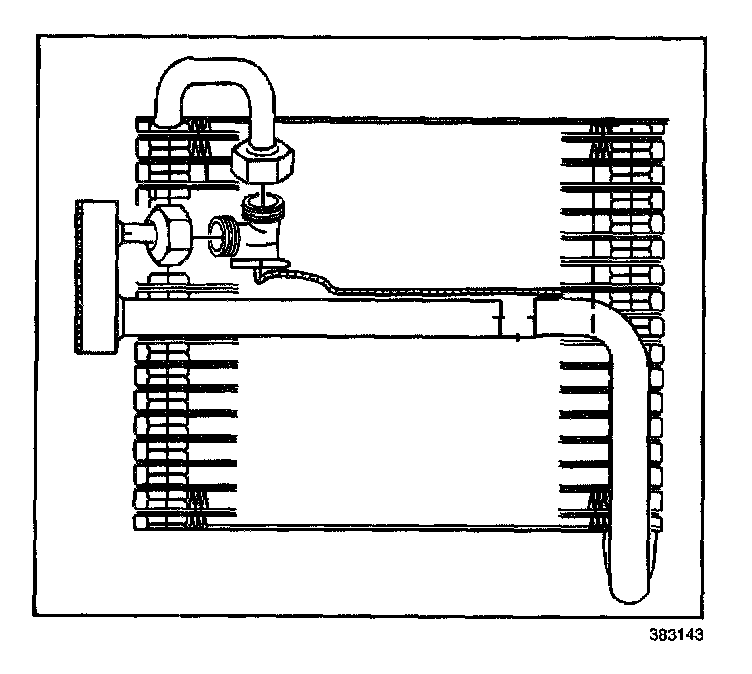

REMOVAL PROCEDURE




1. Remove the evaporator core.
2. Gently remove the sealer packed around the thermostatic expansion valve (TXV).

IMPORTANT: Note the mounting location and the orientation of the capillary tube on the evaporator core.

3. Remove the clip that retains the capillary tube to the evaporator core.
4. Remove the nuts that retain the TXV to the evaporator core.
5. Remove the TXV from the core.

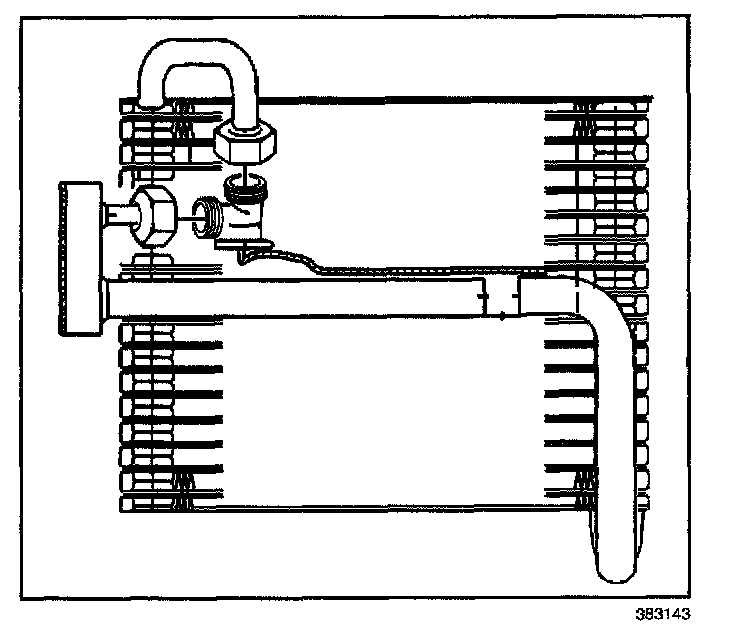

INSTALLATION PROCEDURE




1. Install the TXV to the core.

NOTE: Refer to Fastener Notice in Caution and Notices.

2. Install the nuts that retain the TXV to the evaporator core.

Tighten
Tighten the nuts that retain the TXV to the evaporator core to 5 N.m (44 lb in).

IMPORTANT: Install the retaining clip and the capillary tube in the location and the orientation that was noted during disassembly.

3. Install the capillary tube and the retaining clip to the evaporator core.
4. Pack the sealer around the TXV as found during disassembly.
5. Install the evaporator core.
