Unit Repair

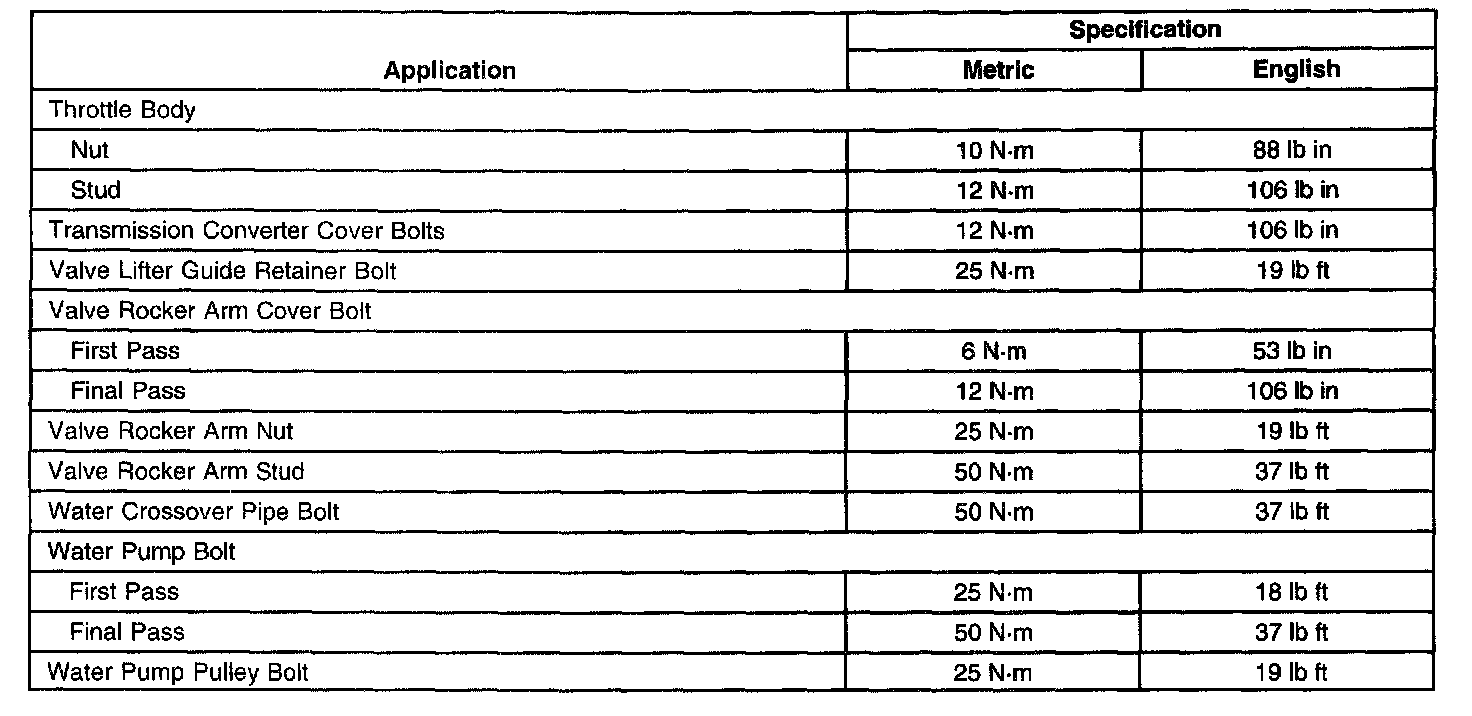

Fastener Tightening Specifications





Part 1 of 3





Part 2 of 3





Part 3 of 3

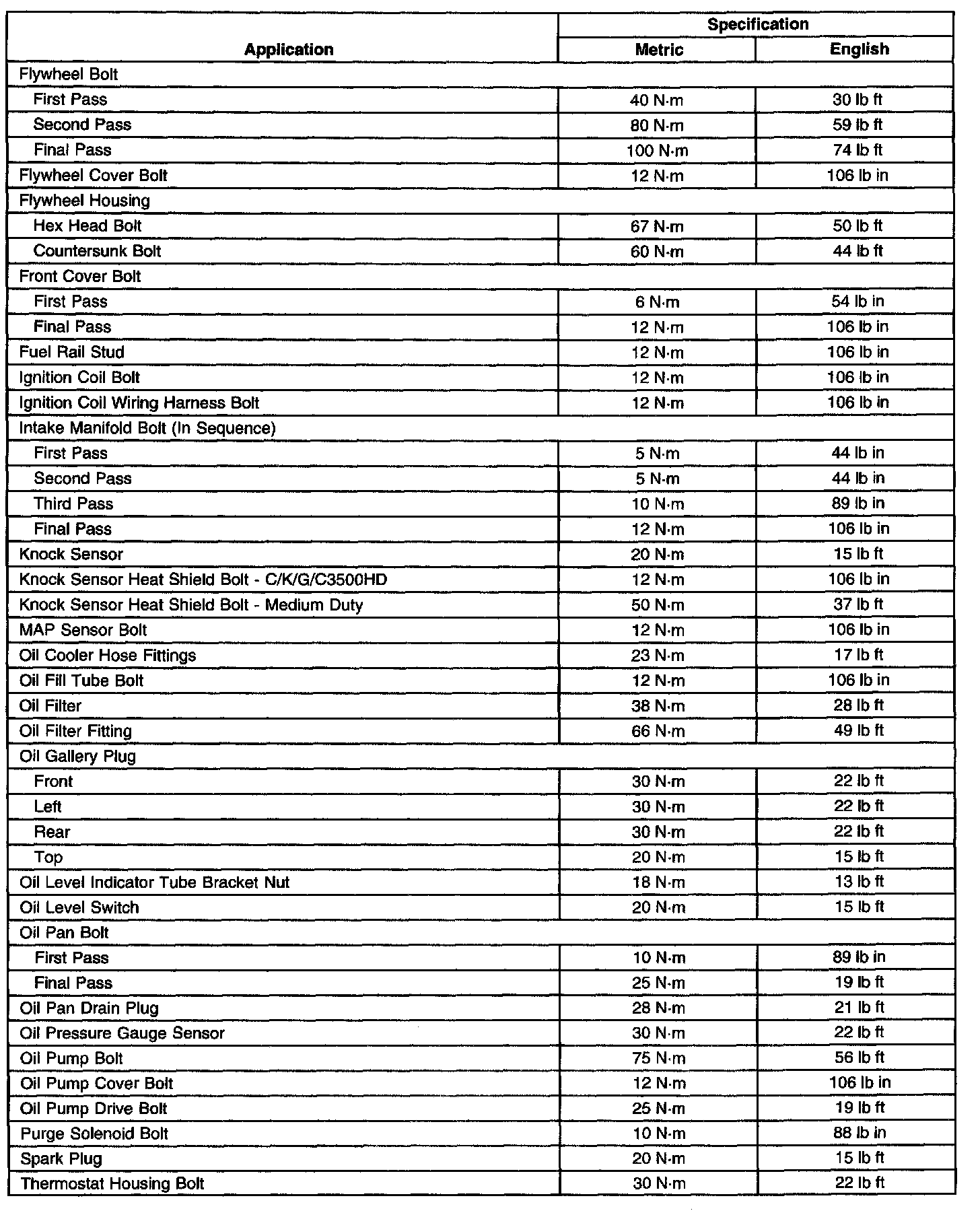

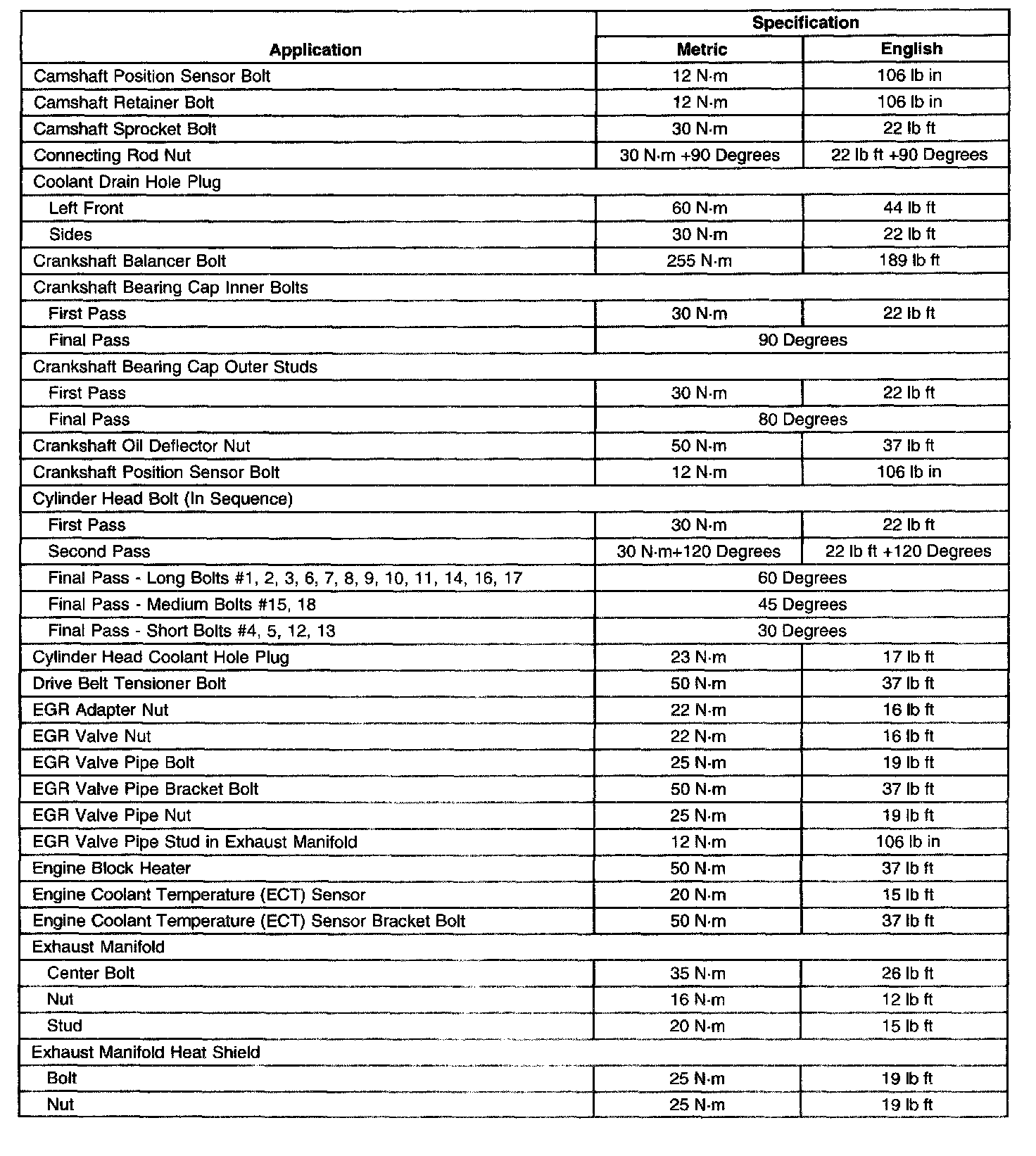

Engine Mechanical Specifications





Part 1 of 3





Part 2 of 3





Part 3 of 3
