HVAC Systems - Manual
>>
Suburban/Utility - W/O Sunroof
Suburban/Utility - W/O Sunroof

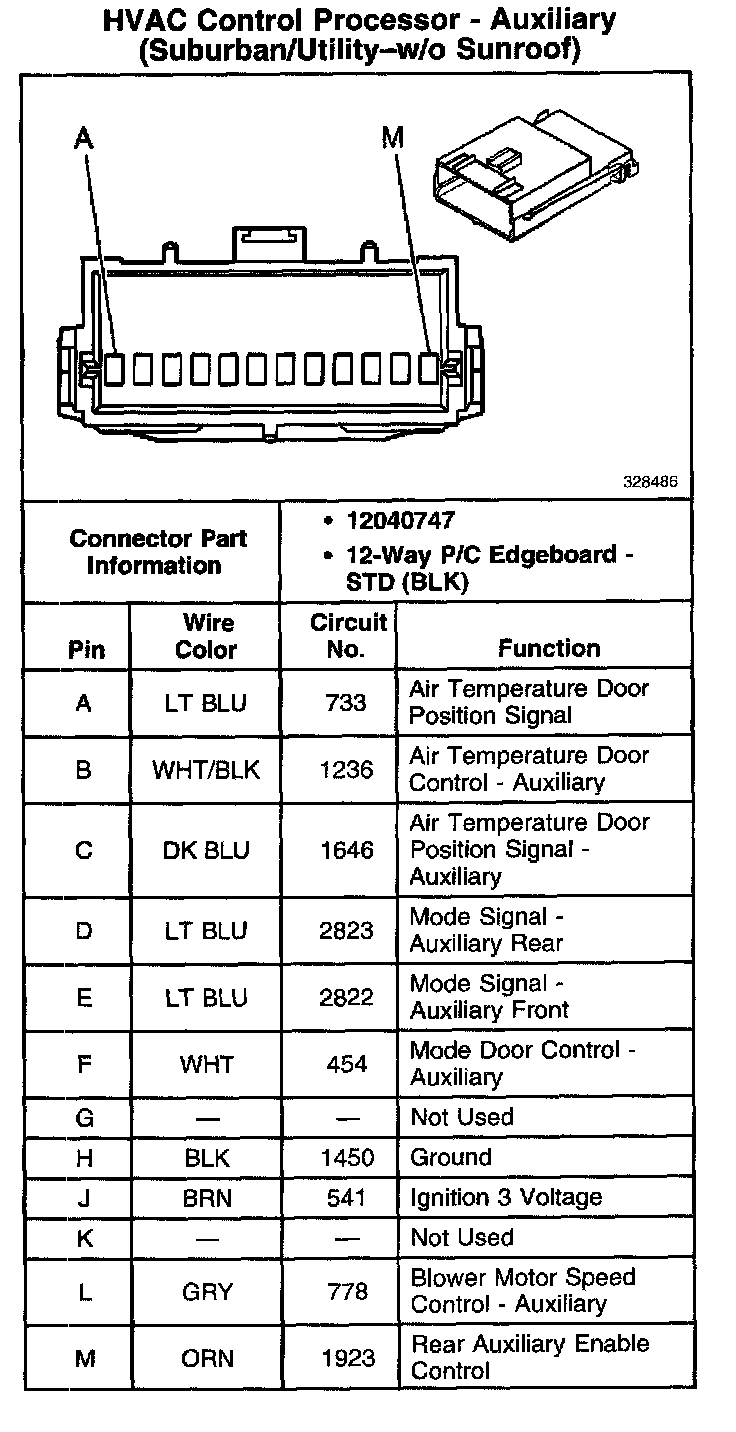

HVAC Control Processor - Auxiliary (Suburban/Utility - W/O Sunroof):
