Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>
Real Time Damping
>>

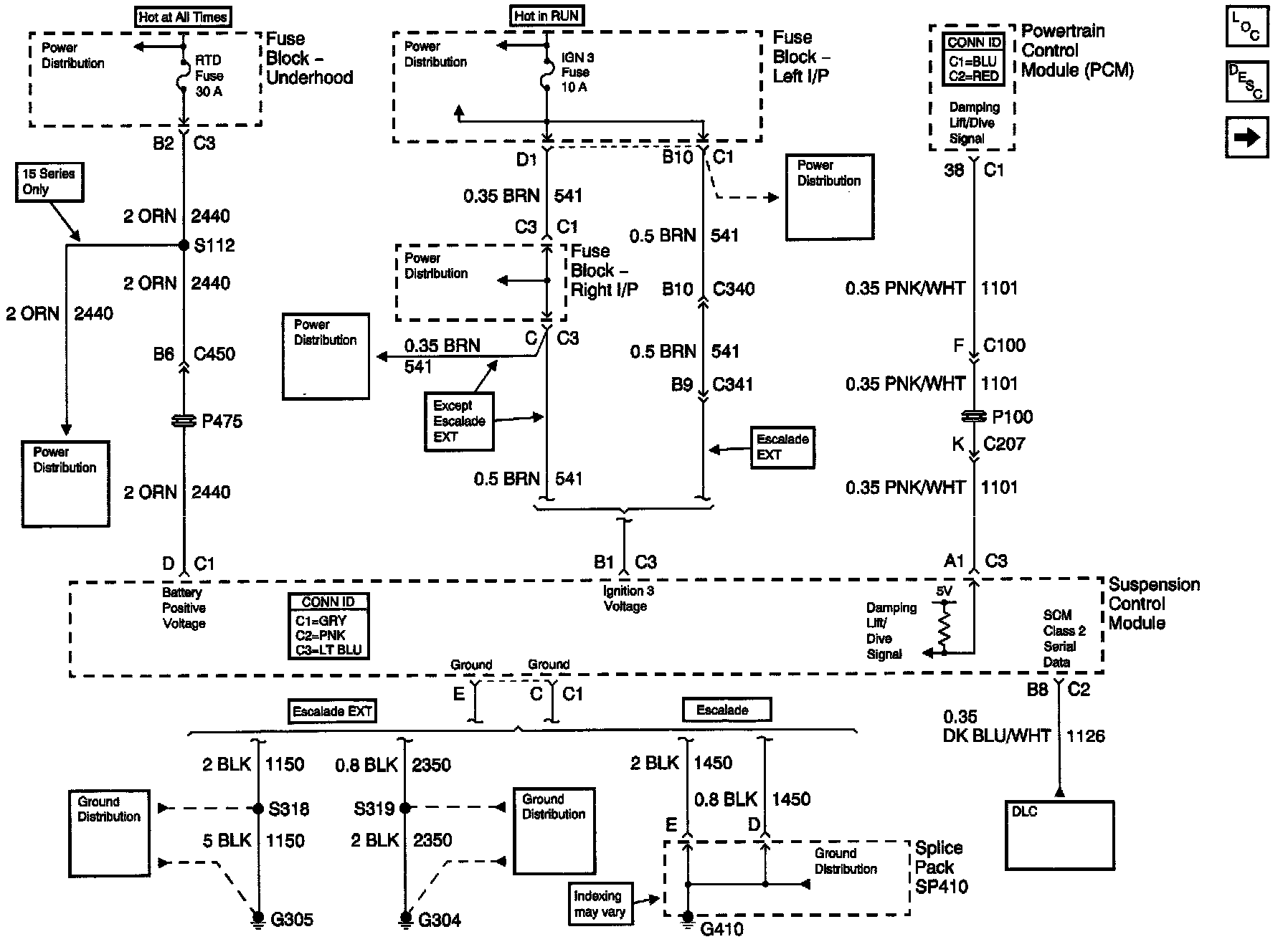

Suspension Controls Schematics (Power, Ground, Data Link Connector (DLC))
Suspension Controls Schematics (Power, Ground, Data Link Connector (DLC))
