36. Fuel Injector Sleeve Removal

Fuel Injector Sleeve Removal

- Tools Required
- J 45910 Fuel Injector Sleeve Remover/Installer

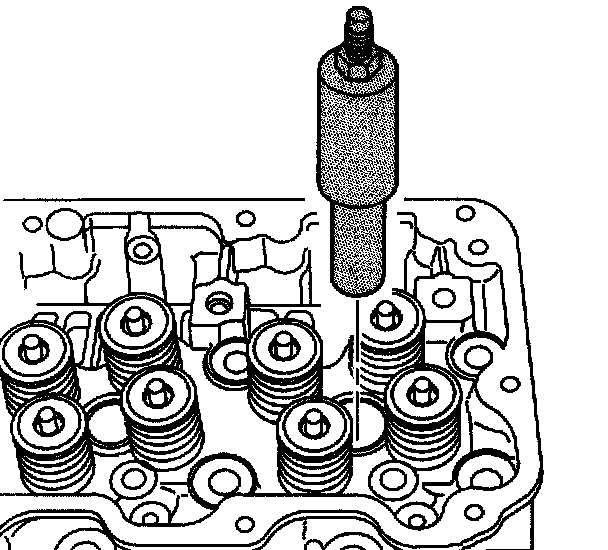

1. Install J 45910 into the fuel injector sleeve.

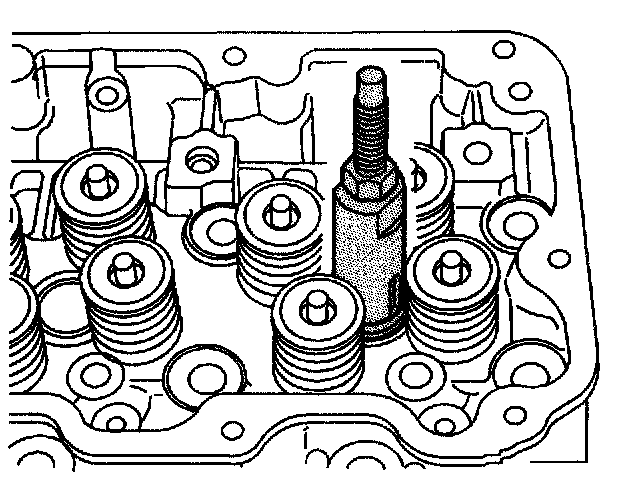

2. Tighten the nut while holding J 45910.





3. Install J 45910-2 over J 45910-1 which are both part of kit J 45910, and add the washer and nut.

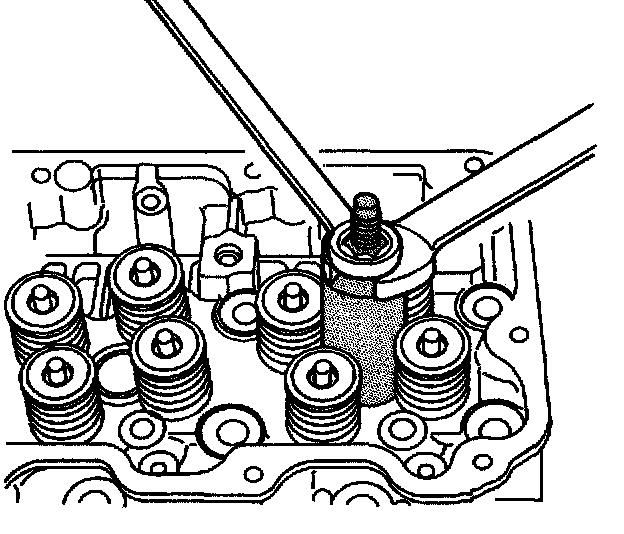

4. Hold J 45910 while turning the nut to remove the fuel injector sleeve.





5. Remove J 45910 with the fuel injector sleeve.

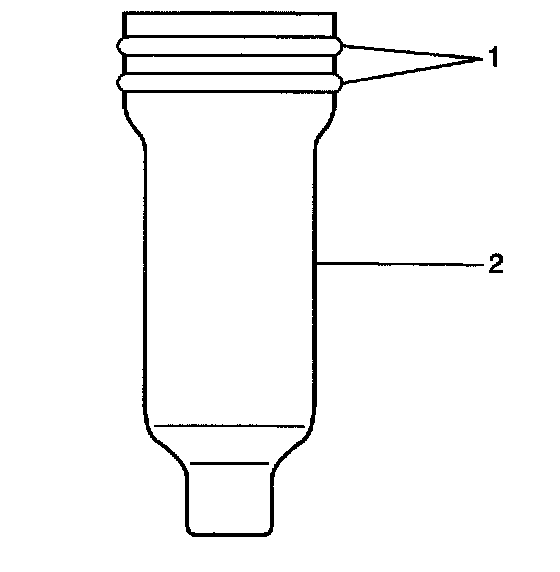

6. Remove the O-rings (1).
