Steps 51-89

51. Move the A/C compressor with the hoses attached to the right side of the engine compartment.
52. Move the wiring harness to the left side of the vehicle and secure out to the way.





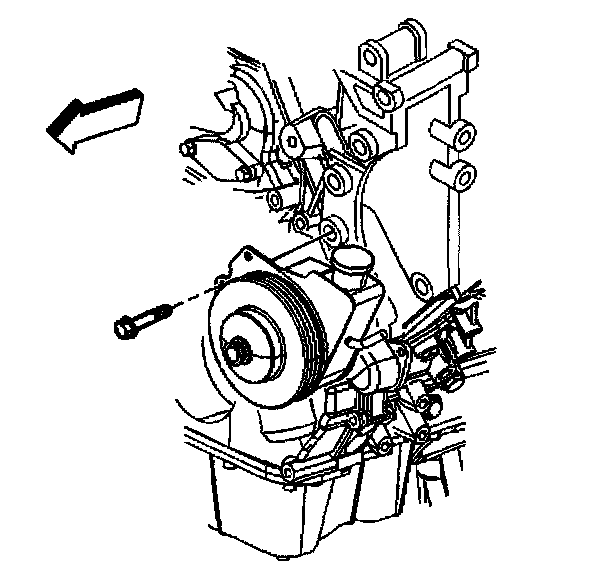

53. Remove the bolts retaining the power steering pump front bracket to the power steering pump and the air conditioner compressor mounting bracket.
54. Remove the air conditioning and power steering pump mounting bracket.
When the battery cables are removed from the engine the power steering pump can be removed further out of the way.





55. Remove the positive crankcase ventilation (PCV) oil separator from the bracket.
56. Remove the bolts retaining the PCV separator bracket and the fuel bleed valve.





57. Remove the right idler pulley (ribbed).





58. Remove the generator mounting bracket and secure to the side.
- The generator does not require removal.
- The drive belt tensioner does not require removal.

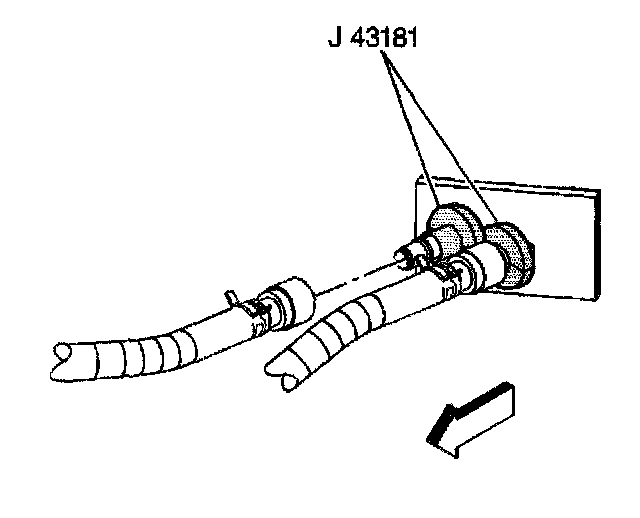

59. Use the J 43181 in order to disconnect the inlet heater hose from the heater core inlet.





60. Remove the bolt and the ground wires at the rear of the left cylinder head.
61. Raise the vehicle. Refer to Vehicle Lifting.





62. Remove the oil pan skid plate.





63. Remove the engine protection shield from the vehicle, if equipped.

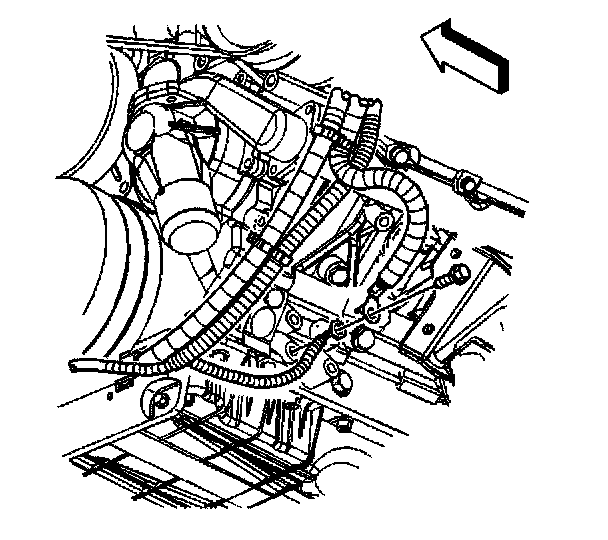

64. Remove the bolt for the battery negative cable and the engine wiring harness ground wire from the left side of the engine.





65. Remove the bolts holding the battery cable channel retainer to the lower crankcase.





66. Disconnect the cord for the engine coolant heater.
67. Remove the starter.





68. Remove the nut holding the battery cable bracket to the right side of the lower crankcase.





69. Remove the bolt holding the auxiliary battery negative cable and the engine wiring harness ground wires to the right side of the engine.
70. Move and secure the battery cables out of the way.





71. Raise the vehicle. Refer to Vehicle Lifting.
72. Drain the engine oil.
73. Remove the exhaust pipe to the exhaust outlet clamp. Move the clamp onto the exhaust pipe.
74. If vehicle is 4WD remove the lower oil pan.





75. If equipped with an automatic transmission, mark the flywheel and torque converter relationship for assembly purposes.
76. Remove the torque convertor bolts through the starter opening.





77. If equipped with an automatic transmission, remove the transmission oil line clip nut.





78. If equipped with an automatic transmission, remove the nuts retaining transmission fluid fill tube bracket.





79. Remove the transmission to engine stud and bolts (automatic transmission shown). Note the location of the studs and any brackets attached to the studs.





80. Lower the vehicle to work through the wheelhouse opening.
81. Remove the engine mount to frame bracket bolts (left side shown).
82. Lower the vehicle.





83. Install the J36857 (1) to the rear of the left cylinder head with a suitable bolt.





84. Install the J 36857 (1) to the front of the right cylinder head with a suitable bolt.
85. Install a suitable lifting device. The engine will have to be angled in order to remove. Use a load positioning sling to assist in angling the engine.





86. Raise the vehicle off of the engine mounts.
87. Remove the left and right engine mount frame brackets.
88. Remove the engine assembly from the vehicle.
89. In order to secure the engine to an engine stand remove the following and follow the special procedures:
- Refer to Engine Flywheel Removal.
- Refer to Exhaust Outlet Removal.
- Refer to Oil Pan Removal - Lower.
- Refer to Oil Pan Removal - Upper.
- Refer to Engine Flywheel Housing Removal.
- Refer to Engine Mounting to Stand.
