Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
C 2500 Truck 2WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Headlamps Inoperative - Low Beams
Headlamps Inoperative - Low Beams

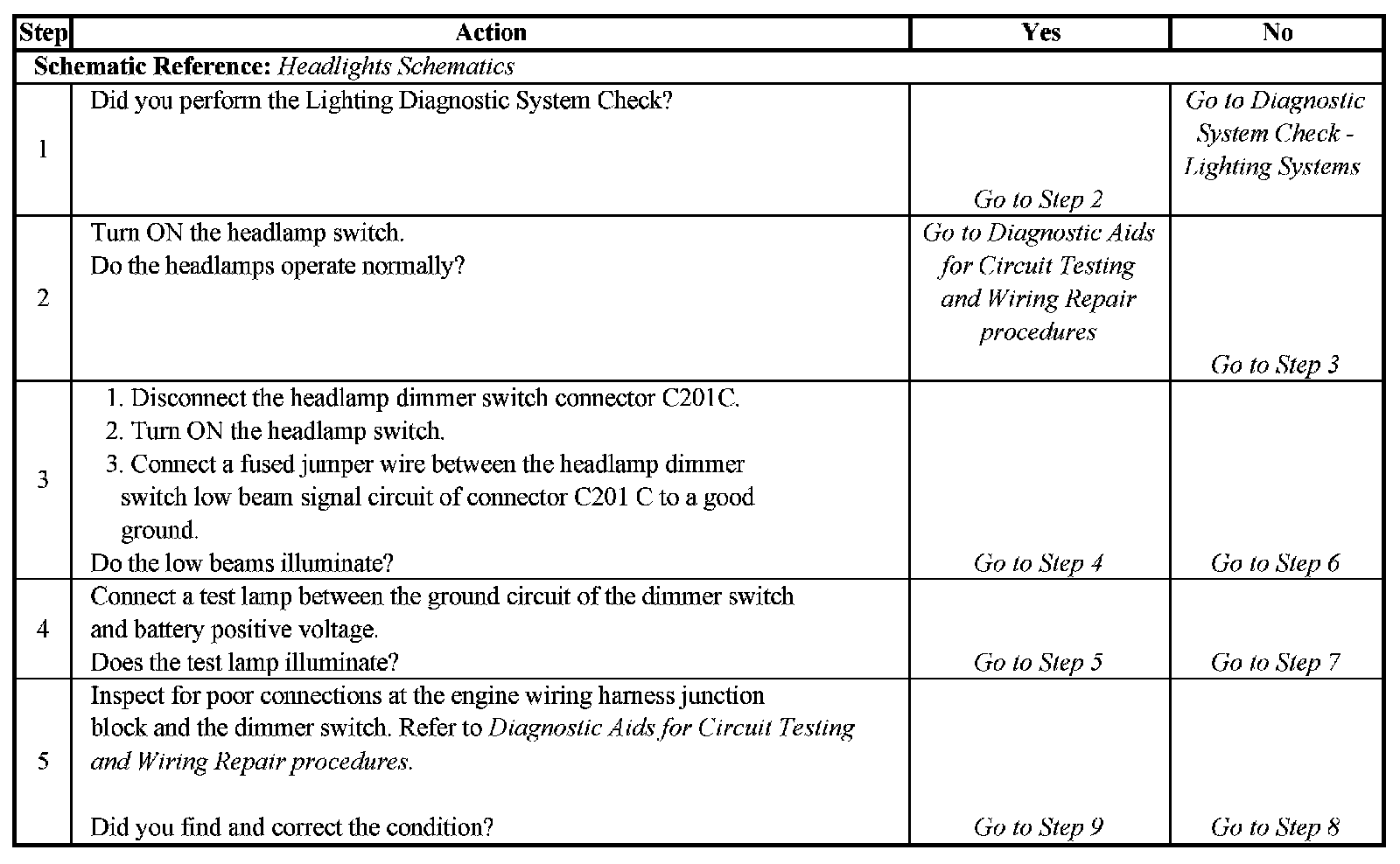

Headlamps Inoperative - Low Beams - Steps 1-5:

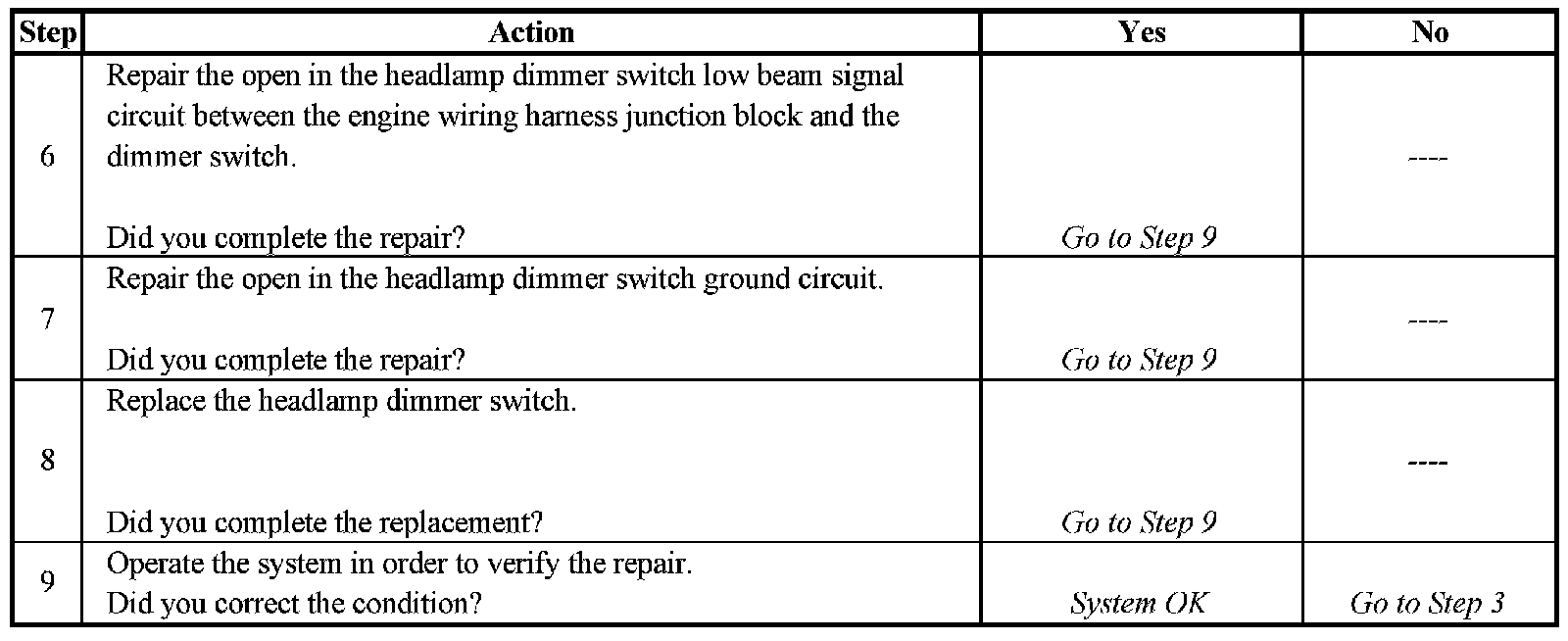

Headlamps Inoperative - Low Beams - Steps 6-9:
