Chevrolet
>>
2002
>>
C 2500 Truck 2WD V8-6.6L DSL Turbo VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>

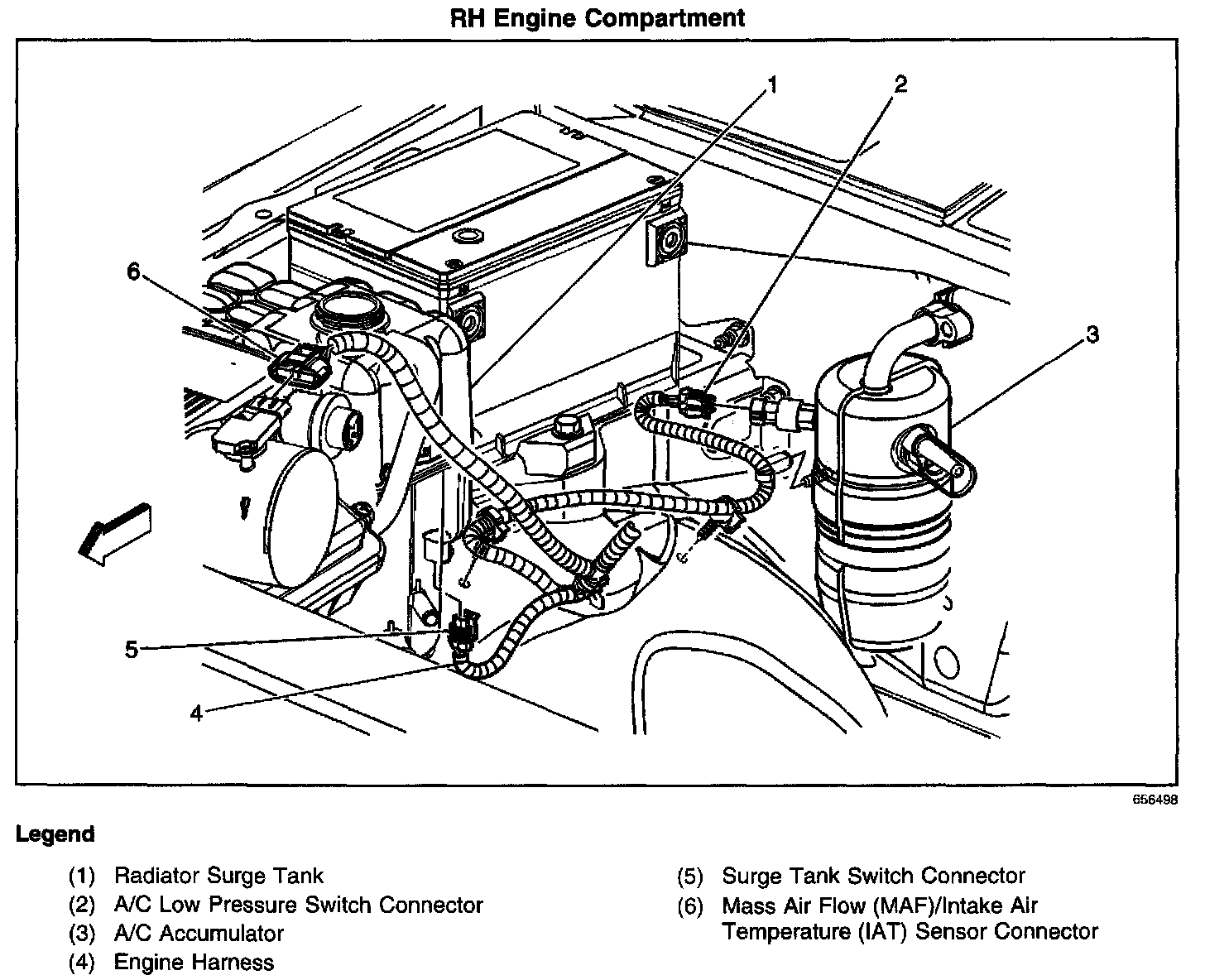

RH Engine Compartment
RH Engine Compartment
Locations View:
