Mode Control Cable Replacement

Mode Control Cable Replacement

Removal Procedure

1. Remove the IP bezel assembly screws.
2. Remove the IP bezel assembly.
3. Remove the radio. Refer to Radio Replacement Service and Repair in Entertainment.




4. Remove the HVAC control assembly (2).

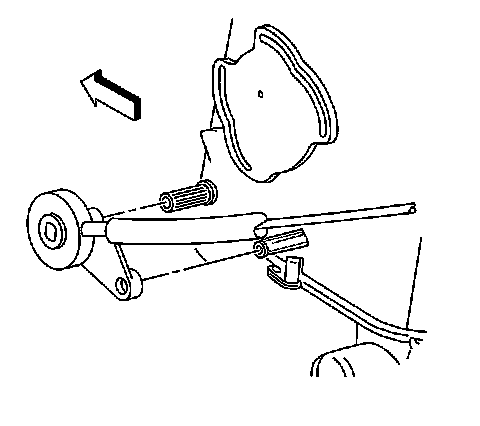

5. Disconnect the mode control cable from the HVAC module.




6. Remove the mode control cable from the HVAC control assembly (1).
7. Remove the mode control cable from the IP carrier.

Installation Procedure

1. Install the mode control cable to the IP carrier.




2. Install the mode control cable to the HVAC control assembly (1).




3. Connect the mode control cable to the HVAC module.




4. Install the HVAC control assembly (2).

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the HVAC control assembly screws.

Tighten the screws to 2 Nm (18 lb in).

6. Install the radio. Refer to Radio Replacement Service and Repair in Entertainment.
7. Install the IP bezel assembly.
8. Install the IP bezel assembly screws.

Tighten the screws to 2 Nm (18 lb in).
