Temperature Control Cable Replacement

Temperature Control Cable Replacement

Removal Procedure

1. Remove the IP bezel assembly screws.
2. Remove the IP bezel assembly.
3. Remove the radio. Refer to Radio Replacement Service and Repair in Entertainment.




4. Remove the HVAC control assembly (2).

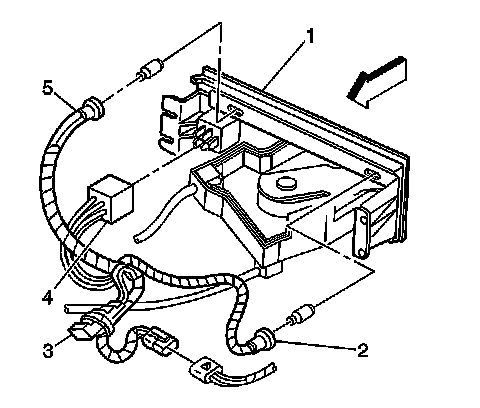

5. Disconnect the temperature control cable from the HVAC module.
6. Disconnect the temperature control cable from the HVAC control assembly (1).
7. Remove the temperature control cable from the IP carrier.
8. Remove the temperature control cable.

Installation Procedure

1. Install the temperature control cable.
2. Connect the temperature control cable to the HVAC module.




3. Connect the temperature control cable to the HVAC control assembly (1).

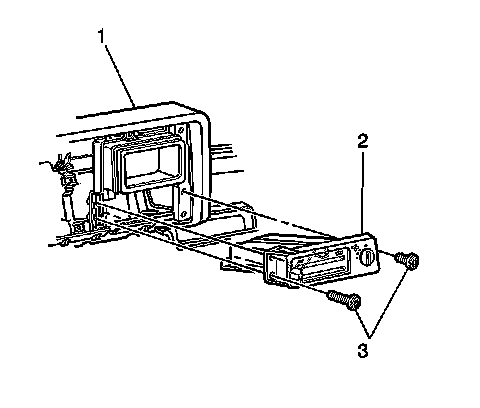

4. Install the HVAC control assembly (2) to the instrument panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

5. Install the HVAC control assembly screws.

Tighten the screws to 2 Nm (18 lb in).

6. Install the radio. Refer to Radio Replacement Service and Repair in Entertainment.
7. Install the IP bezel assembly.
8. Install the IP bezel assembly screws.

Tighten the screws to 2 Nm (18 lb in).
