Outlet

Radiator Hose Replacement - Outlet

Removal Procedure





1. Drain the cooling system.

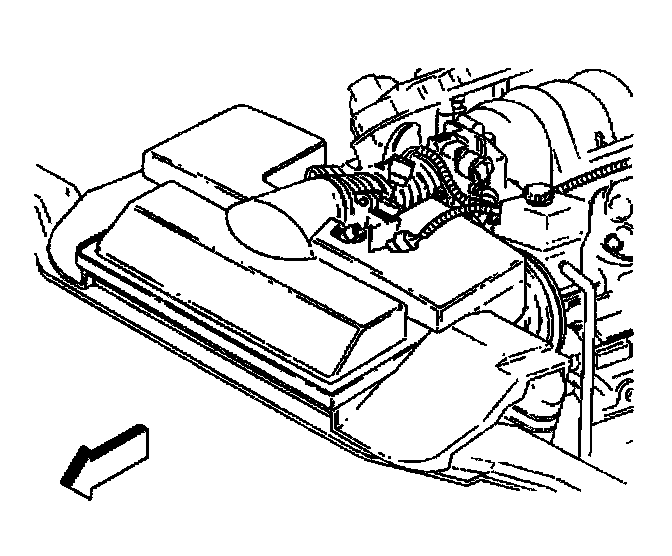

2. Disconnect the following electrical connectors:
^ Intake air temperature sensor
^ Mass airflow sensor

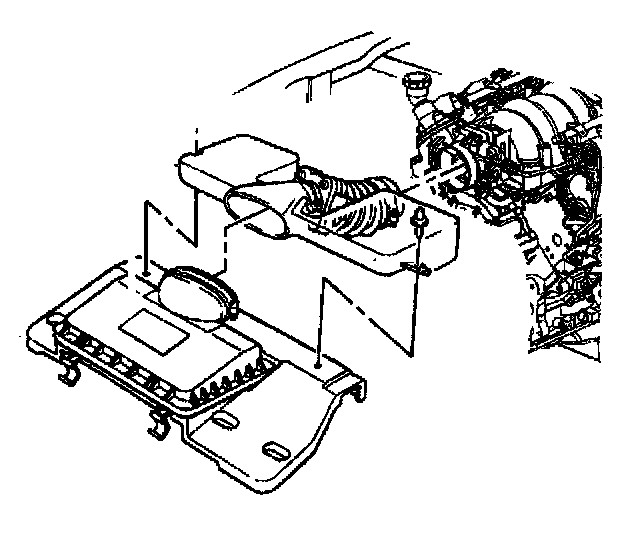

3. Remove the air cleaner outlet duct.

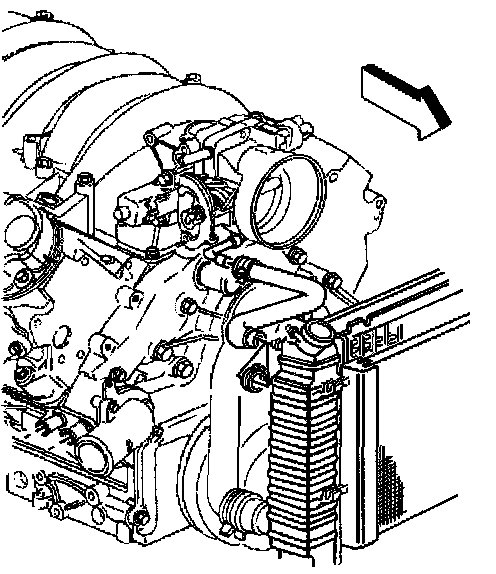

4. Reposition the radiator outlet hose clamp from the water outlet.
5. Remove the radiator outlet hose from the water outlet.
6. Raise and support the vehicle. Refer to Vehicle Lifting.





7. Reposition the radiator outlet hose clamp from the radiator.

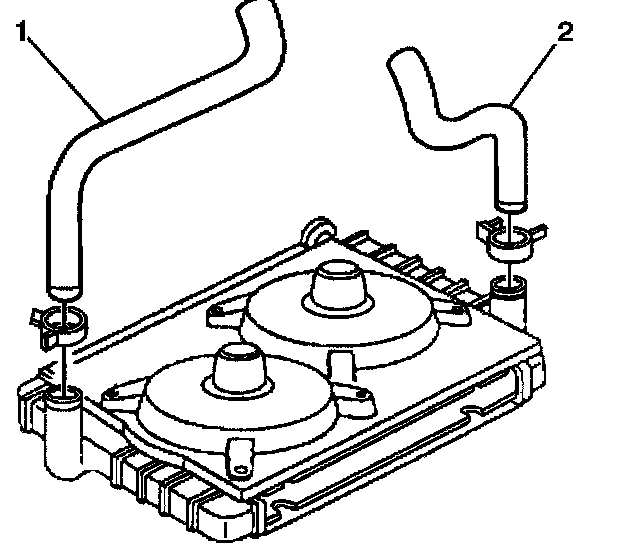

8. Remove the radiator outlet hose (2) from the radiator.

Installation Procedure





1. Install the radiator outlet hose (2) to the radiator.
2. Reposition the radiator outlet hose clamp to the radiator.
3. Lower the vehicle.





4. Install the radiator outlet hose to the water outlet.
5. Reposition the radiator outlet hose clamp to the water outlet.





6. Install the air cleaner outlet duct.





7. Connect the following electrical connectors:
^ Intake air temperature sensor
^ Mass air flow sensor
8. Fill the cooling system.
