Power Steering Pressure Hose Replacement
Power Steering Pressure Hose ReplacementRemoval Procedure

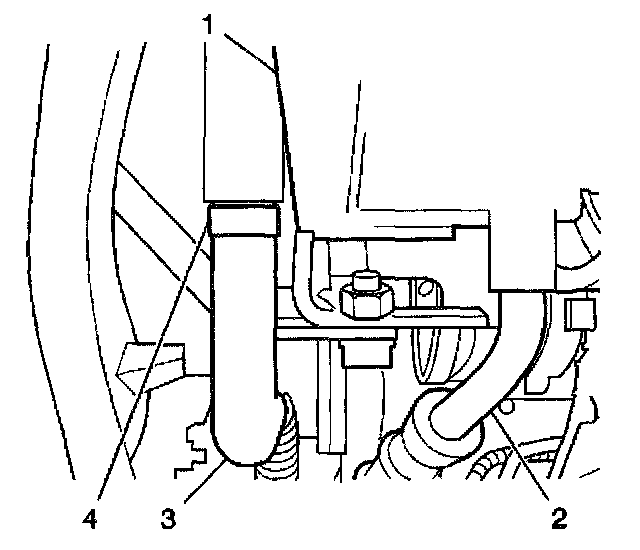

1. Remove the power steering pressure hose (2) from the power steering pump (1).
2. Raise the vehicle on a hoist. Refer to Vehicle Lifting.
3. Remove the front exhaust pipe, automatic transmission only.
4. Remove the power steering pressure hose (1) from the power steering gear (3).
5. Remove the power steering hose retainer (2).
6. Remove the power steering pressure hose (1) from the vehicle.
Installation Procedure
Notice: Refer to Installing Hoses Without Twists or Bends Notice in Service Precautions.
1. Install the power steering pressure hose (1) to the vehicle.
2. Install the power steering hose retainer (2).
Notice: Refer to Fastener Notice in Service Precaution.
3. Install the power steering pressure hose (1) to the power steering gear (3).
Tighten the fitting to 27 Nm (20 ft. lbs.).
4. Install the front exhaust pipe, if removed.
5. Lower the vehicle.
6. Install the power steering pressure hose (2) to the power steering pump (1).
Tighten the fitting to 27 Nm (20 ft. lbs.).
7. Bleed the power steering system.
