Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE

1. Turn the ignition switch OFF.
2. Disconnect the IAT sensor electrical connector.

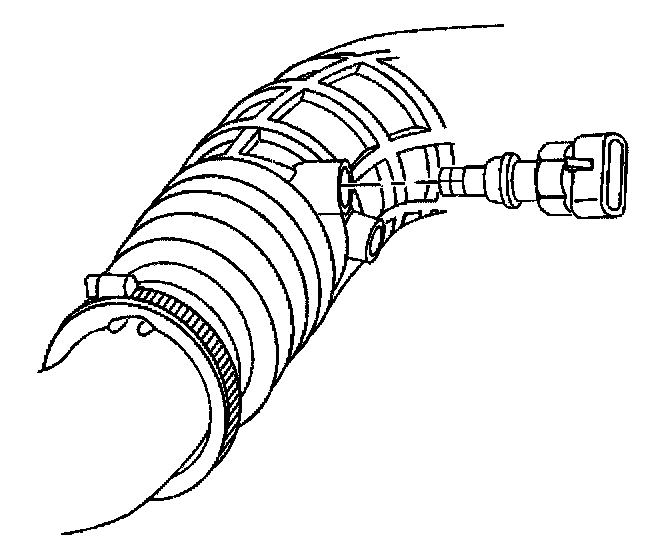

3. Carefully remove the IAT sensor from air cleaner outlet duct.

INSTALLATION PROCEDURE

1. Install the IAT sensor into the air cleaner outlet duct.
2. Connect the IAT sensor electrical connector.
