Engine Controls - Poor Generic SCAN Tool Communications
Bulletin No.: 04-06-04-021Date: April 07, 2004
TECHNICAL
Subject:
Powertrain Control Module (PCM) Will Not Properly Communicate Certain On-Board Diagnostic Test Result Information with Non-TECH2(R) (Generic) Service or Test Equipment (Reprogram PCM)
Models:
2002 Chevrolet Cavaliers
with 2.2L Compressed Natural Gas (CNG) (RPO KL6) Engine (VIN 4 - RPO LN2)
Condition
Some customers may comment that their vehicle's engine is unable to be properly serviced or tested using non-TECH2(R) (Generic) service or test equipment. When requested by non-TECH2(R) (Generic) service or test equipment, these vehicles are unable to properly report failed gasoline diagnostic test results that were logged on the current or a previous drive cycle.
Correction
Re-program the PCM using calibration 12579194 or later.
The new calibration was released beginning with TIS satellite data update version 8.5 for 2002, available August 2002. As always, make sure your TECH2(R) is updated with the latest software version.
Warranty Information

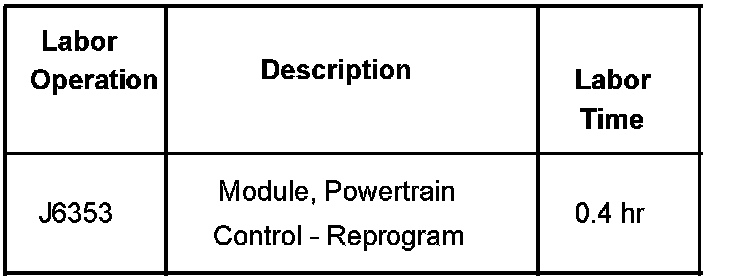

For vehicles repaired under the applicable 8 year 80,000 mile (130,000 kilometers) emission controller warranty, use the table shown.
