Dimmer Switch: Service and Repair

INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT

REMOVAL PROCEDURE

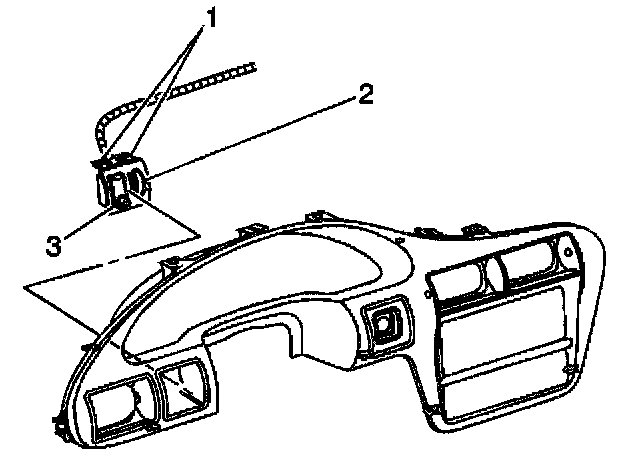

Location View:




1. Remove the instrument panel accessory trim plate to access the fog lamp switch.
2. Release the retainers on the fog lamp/dimmer switch housing using a small flat-bladed tool.
3. Remove the fog lamp/dimmer switch (3) housing from the instrument panel accessory trim plate.
4. Release the retainers on the dimmer lamp switch using a small flat-bladed tool.
5. Remove the dimmer lamp switch from the fog lamp/dimmer switch (3) housing.

INSTALLATION PROCEDURE

Location View:




1. Install the dimmer lamp switch to the fog lamp/dimmer switch housing, pressing into place until fully seated.
2. Install the fog lamp/dimmer switch (3) housing to the instrument panel accessory trim plate, pressing into place until fully seated.
3. Install the to the instrument panel accessory trim plate.
