Turn Signal Lamp: Service and Repair
PARK/TURN SIGNAL LAMP REPLACEMENTREMOVAL PROCEDURE

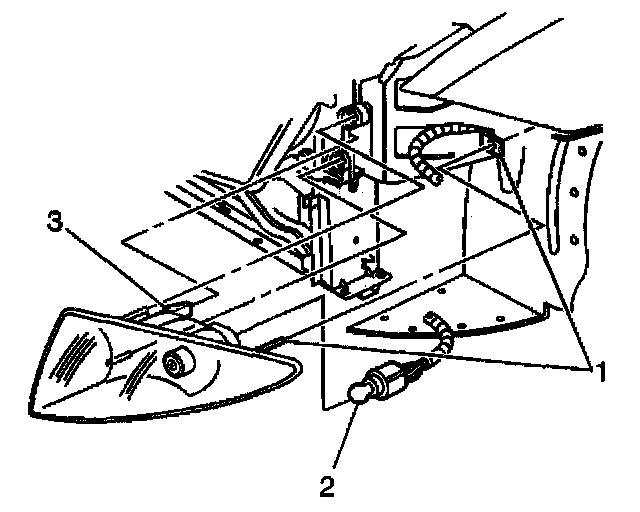

1. Remove the hood close out filler panel.
2. Insert a flat-bladed tool thought the rectangle slot in the headlamp bracket.
3. Apply outboard pressure to the locking tab (3) while guiding the parking lamp forward.
4. Apply pressure to the outboard locking tab (1) while guiding the parking lamp forward.
5. Remove the parking lamp from the vehicle.
6. Disconnect the bulb/socket (2) from the parking lamp.
7. Remove the bulb from the socket, if required.
INSTALLATION PROCEDURE
1. Install the bulb to the socket, if required.
2. Connect the bulb/socket (2) to the parking lamp.
3. Position the parking lamp inboard mounting pins (3) to the headlamp mounting retainers and the outboard locating tab (1) to the fender retainer.
4. Install the parking lamp, pressing into place until fully seated.
