Resonator: Service and Repair

AIR CLEANER OUTLET RESONATOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the air cleaner duct from the air cleaner resonator.

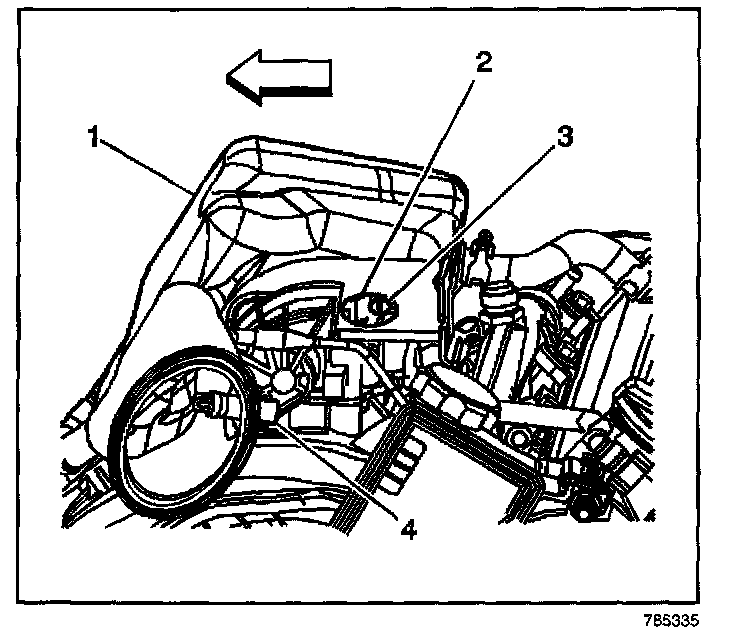

2. Loosen the air cleaner outlet resonator to throttle body clamp (3), accessed through the accelerator bracket (2) slot.
3. Disconnect the intake air temperature (IAT) sensor harness connector (4).
4. Disconnect the vacuum pipe from the air cleaner resonator.

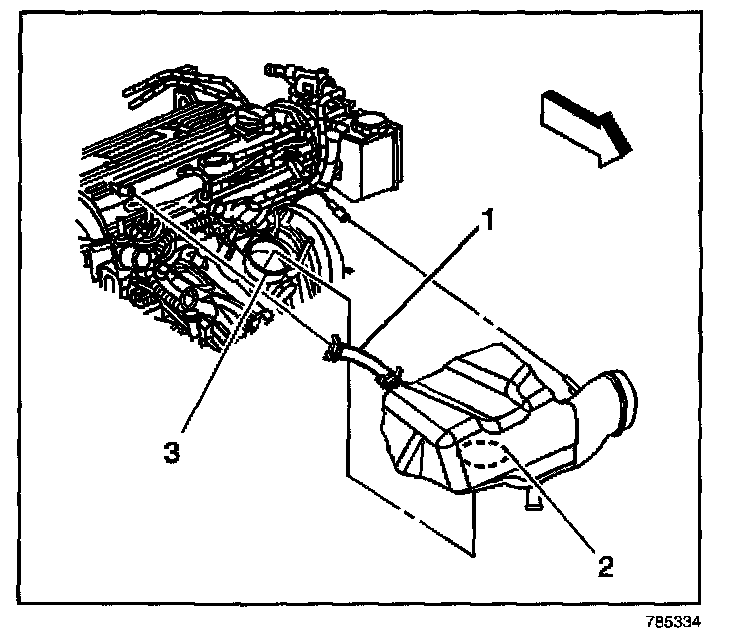

5. Loosen the vent hose clamp and move it away from the air cleaner resonator (2).
6. Disconnect the vent hose (1) from the air cleaner resonator (2).
7. Remove the air cleaner resonator (2) from the throttle body (3).

INSTALLATION PROCEDURE




1. Install the air cleaner resonator to the throttle body.
2. Connect the vent hose to the air cleaner resonator.
3. Move the spring clamp over the air cleaner resonator vent port and vent hose.

NOTE: Refer to Fastener Notice in Service Precautions.




4. Tighten the resonator to throttle body clamp.

Tighten
Tighten the clamp to 5 N.m (44 lb in).

5. Connect the IAT sensor harness connector.
6. Connect the vacuum pipe to the air cleaner resonator.
7. Connect the air cleaner intake duct to the air cleaner resonator.

Tighten
Tighten the air cleaner intake duct clamp to 5 N.m (44 lb in).
