Child Restraint: Service and Repair

CHILD SHOULDER BELT GUIDE REROUTER REPLACEMENT - REAR

REMOVAL PROCEDURE

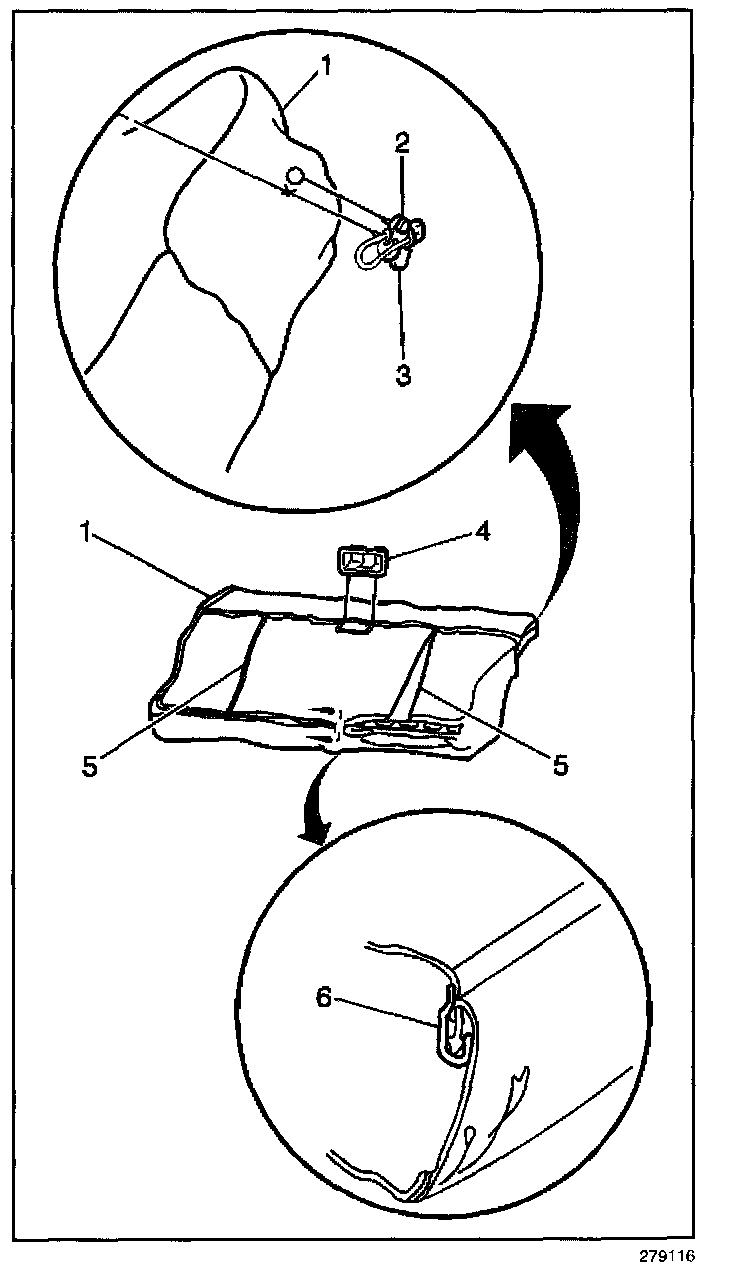

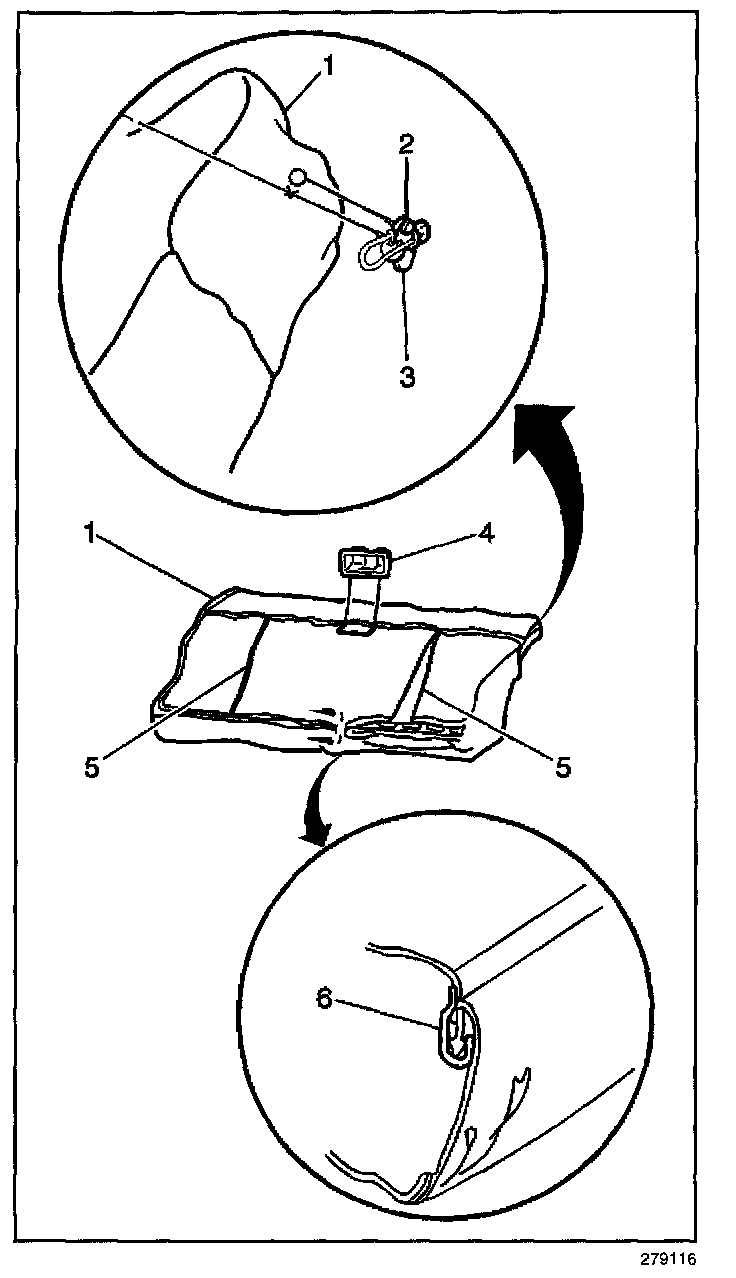

1. Position the rear seat back to remove the child comfort guide from the rear seat back.
2. Release the push pin retainer (2) from the rear seat back.
3. Remove the child comfort guide (3) from the rear seat back (1).

INSTALLATION PROCEDURE




1. Install the child comfort guide (3) to the rear seat back (1).
2. Install the push pin retainer (2) to the rear seat back (1).
3. Reposition the rear seat back to the original position.
