Transmission Mount: Service and Repair
Automatic Transmission Mount ReplacementRemoval Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the left front wheel and tire assembly.
3. Remove the left front fender liner.

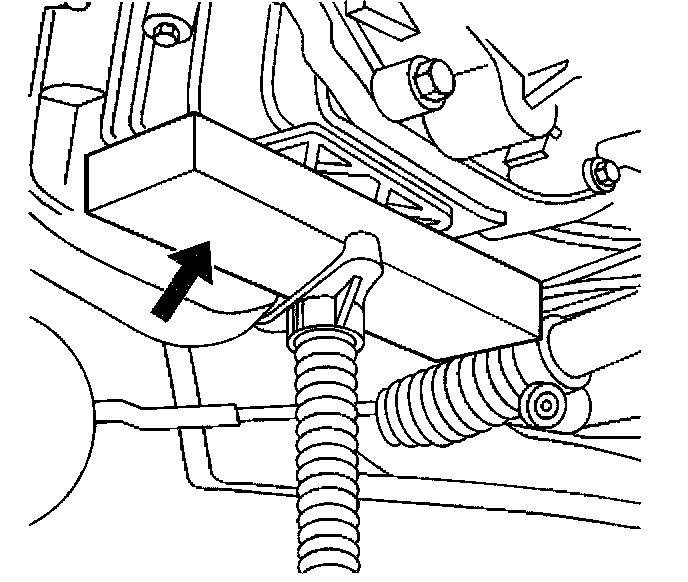

4. Install a jackstand and a block of wood to support the transaxle.

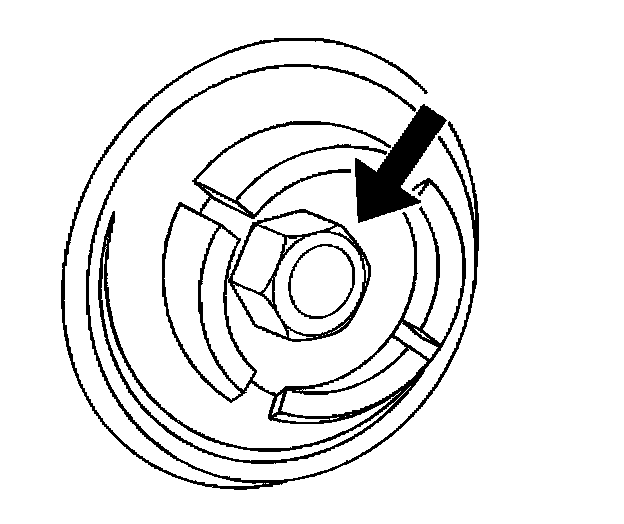

5. Remove the expansion bolt from the transmission mount.

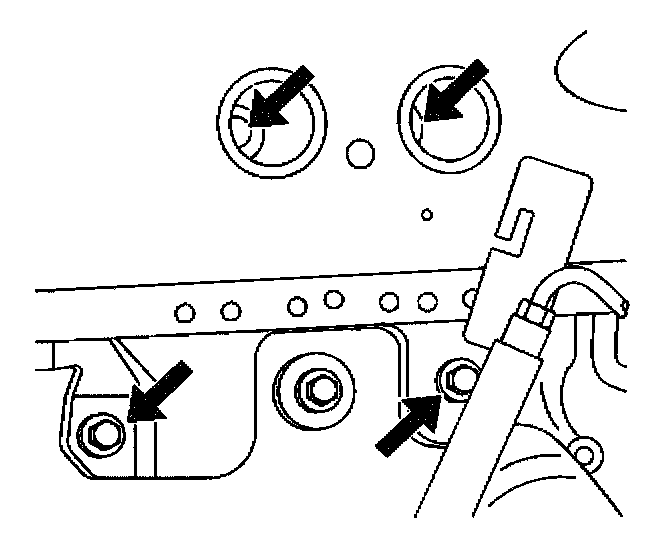

6. Remove the transmission mount bolts.
7. Remove the mount.
Installation Procedure
1. Transfer the mount bracket to the new mount.
2. Position the mount and start the bolts into the threads.
Notice: Refer to Fastener Notice in Service Precautions.

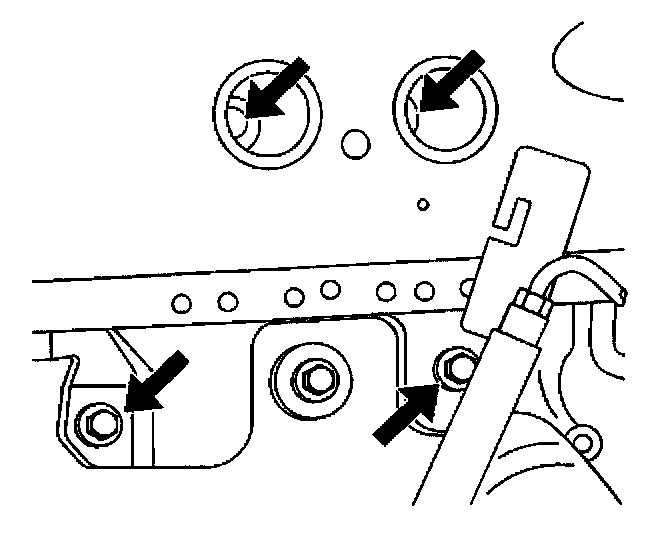

3. Tighten the mount bolts.
^ Tighten the bolts to 66 Nm (41 ft. lbs.).

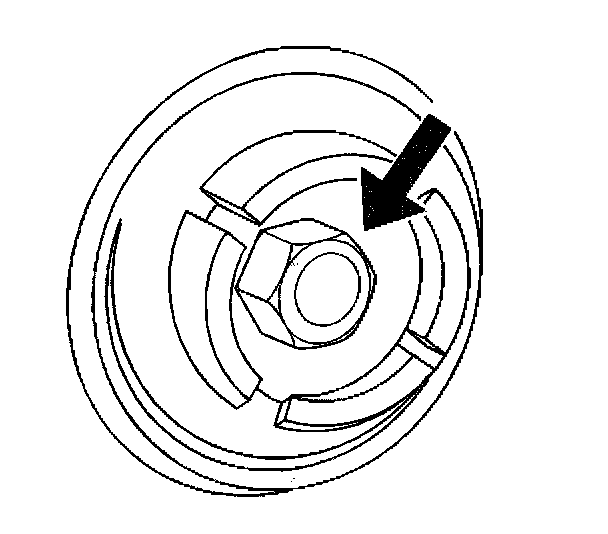

4. Install the mount expansion bolt.
^ Tighten the bolt to 55 Nm (41 ft. lbs.).

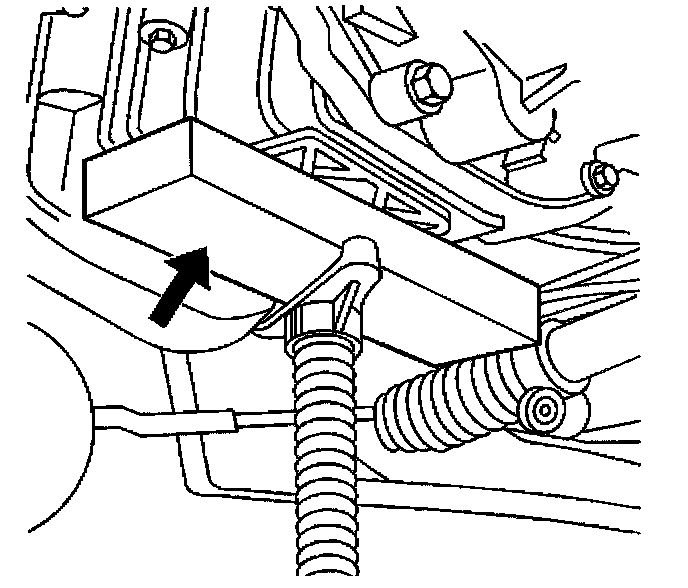

5. Remove the jackstand and the wood block.
6. Install the left fender liner.
7. Install the left tire and wheel assembly.
8. Lower the vehicle.
