Wiper Arm Blade Replacement

REMOVAL PROCEDURE

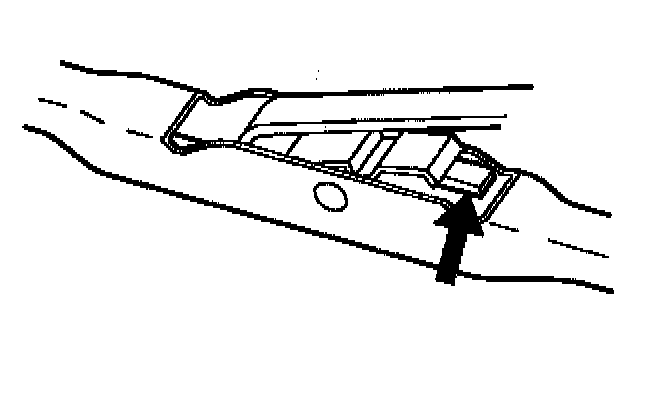

1. Press the wiper blade release tab in to release the wiper blade from the inside radius of the wiper arm.

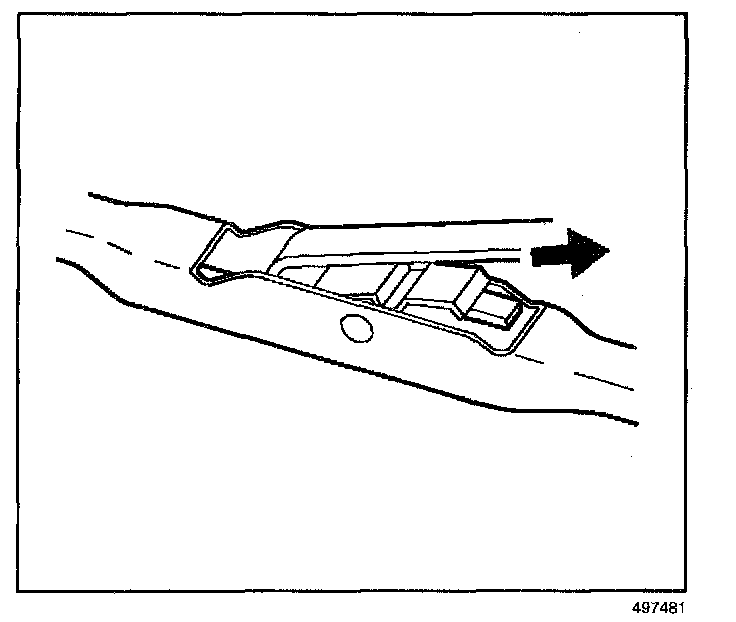

2. Remove the wiper arm out through the opening in the wiper blade.

INSTALLATION PROCEDURE

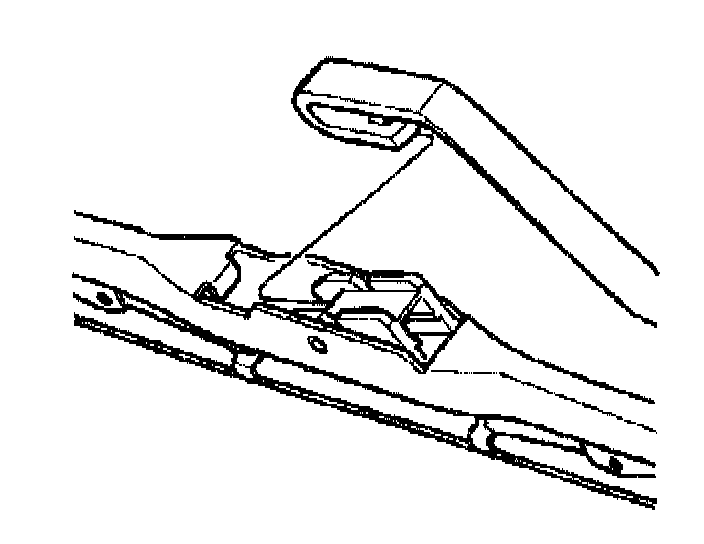

1. Install the hook of the wiper arm through the opening in the wiper blade.




2. Position the wiper blade pivot in the inside radius of the wiper arm hook.
3. Press the wiper blade pivot into the wiper arm hook until fully seated..
4. Inspect the wipers for proper operation.
