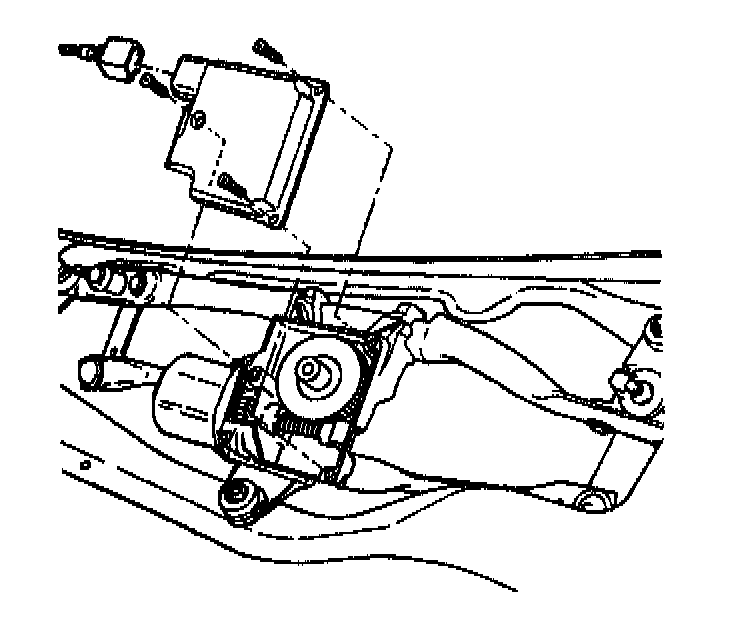

Wiper Motor Cover Replacement

REMOVAL PROCEDURE




1. Remove the air inlet grille panel.
2. Remove the wiper motor cover screws.
3. Remove the wiper motor cover from the wiper motor.
4. Disconnect the wiper motor electrical connector.

INSTALLATION PROCEDURE




1. Connect the wiper motor electrical connector.
2. Position the wiper motor cover onto the wiper motor.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the wiper motor cover screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

4. Install the air inlet grille panel.
5. Inspect the wipers for proper operation.
