Head Up Display Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the I/P upper trim pad.
3. Carefully lift the head-up display (HUD) electrical harness from between the instrument panel cluster (IPC) and the HUD.
4. Disconnect the HUD electrical connector from the IPC.




5. Remove the IPC to steering column bracket retaining screws.
6. Raise the rear of the IPC slightly to release the locator tab, then reposition the IPC to access the HUD-to-steering column bracket retaining screw.




7. LOOSEN the HUD-to-steering column bracket retaining screw.

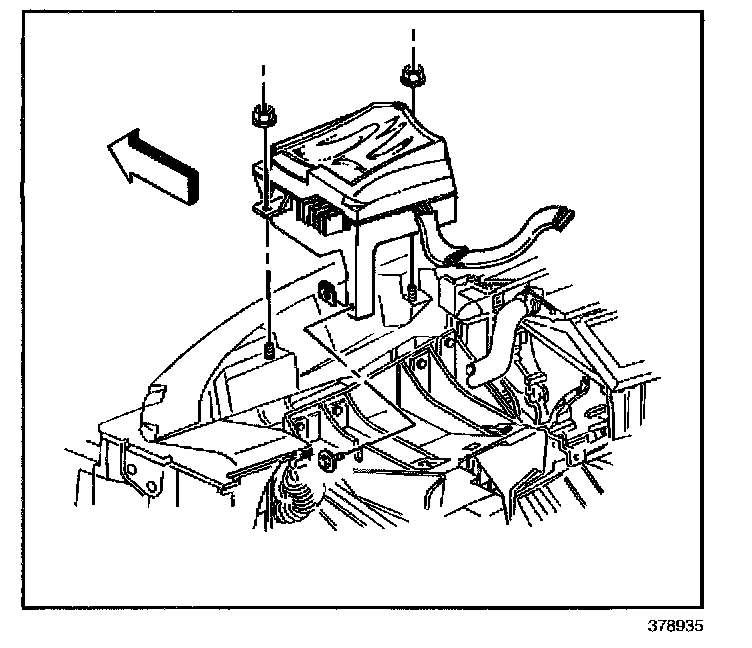

8. Remove the HUD retaining nuts.
9. Remove the HUD from the vehicle.

INSTALLATION PROCEDURE




1. Transfer the HUD-to-steering column bracket retaining screw and nut, to the replacement HUD, if necessary.
2. Install the head-up display (HUD) to the vehicle:
2.1. Install the HUD onto the dash panel mounting studs.
2.2. Slide the HUD retaining screw into the slot on the steering column bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the HUD retaining nuts.

Tighten
Tighten the HUD retaining nuts to 5 N.m (44 lb in).

4. Tighten the HUD-to-steering column bracket retaining screw.

Tighten
Tighten the HUD-to-steering column bracket retaining screw to 3 N.m (27 lb in).




5. Position the IPC to the steering column bracket.
6. Check that the IPC retaining tab (1) is positioned correctly to the steering column bracket (2).

NOTE: Refer to Fastener Notice in Service Precautions.




7. Install the IPC to steering column bracket retaining screws.

Tighten
Tighten the IPC to steering column bracket retaining screws to 3 N.m (27 lb in).




8. Connect the HUD electrical connector to the IPC.
9. Carefully tuck the HUD electrical harness (1) down between the IPC and the HUD as shown.
10. Install the I/P upper trim pad.
11. Connect the negative battery cable.

Tighten
Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

12. Synchronize the transmitters. Refer to Transmitter Synchronization in Keyless Entry. Program the transmillers. Programming and Relearning
