Battery Tray: Service and Repair

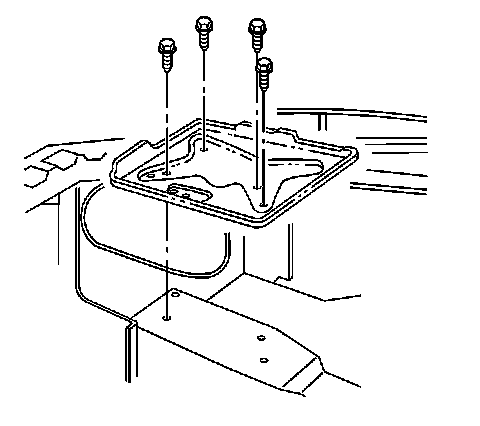

Battery Tray Replacement

Removal Procedure




1. Remove the battery.
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the battery tray bolts.

Tighten the battery tray bolts to 5 N.m (44 lb in).

3. Install the battery.
